S3100-14G2F-PoE+ 14-Port Gigabit PoE+ Managed Switch

MODELS3100-14G2F-PoE+

  • 12x GE PoE+ ports + 2x GE SFP ports + 2x GE non-PoE ports

  • 185W PoE budget, 802.3af/at compliant for stable power to APs & cameras

  • Fanless silent design for zero-noise operation in offices & classrooms

  • Full Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • Plug-and-play, flexible deployment, ideal quiet PoE access for SMB networks

GET A FREE QUOTE

Specifications Description

HODONET S3100-14G2F-PoE+ Product Specifications
*14-Port Gigabit PoE+ Managed Switch*

CategoryItemSpecification
OverviewDescriptionA compact and silent PoE+ managed switch featuring 14 Gigabit ports (12 with PoE+) and 2 Gigabit SFP slots. With a 185W PoE budget and fanless design, it is an ideal, quiet access solution for noise-sensitive environments like small offices, classrooms, or reception areas.
Physical SpecsPerformance

• Switching Capacity32 Gbps

• Forwarding Rate23.81 Mpps

• MAC Address Table8K

Hardware

• Flash Memory128 MB

• DRAM1 GB

Power

• InputAC 100-240V， 50/60 Hz

• Power Consumption30 W

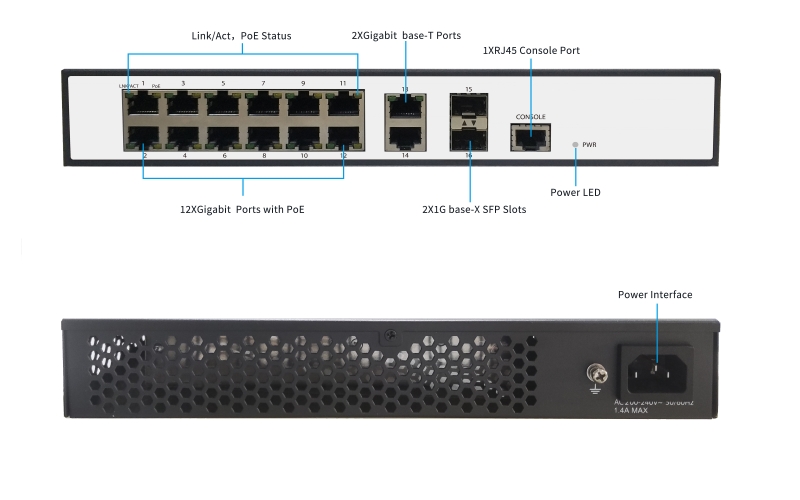

InterfaceData Ports14 x 10/100/1000Base-T RJ45 Ports (12 Ports with PoE+)
2 x 100/1000Base-X SFP Fiber Ports

Management Ports1 x Console (RJ45)
PoEStandardIEEE 802.3af/at

Total Power Budget185 W

PoE Port Count12 Ports

Max. Power per Port30W (802.3at)

Simultaneous PowerAll 12 PoE Ports @ 15.4W
or 6 PoE Ports @ 30W
Software FeaturesSystem ManagementSNMP, CLI, Web, SSH, DNS, ISDP, LLDP, Timer Schedule, PoE Management

Layer 2 SwitchingVLAN (4K), STP, LACP (12 groups, up to 8 ports/group), Loop Protection, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q Tunneling

Quality of Service8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, DiffServ

SecurityPort Authentication, ACL, Access Control, Traffic Control, DoS Protection

Maintenance & MonitoringsFlow, Port Mirroring, Logging, Configuration File Management, Upgrade
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)

CoolingFanless, Natural Convection

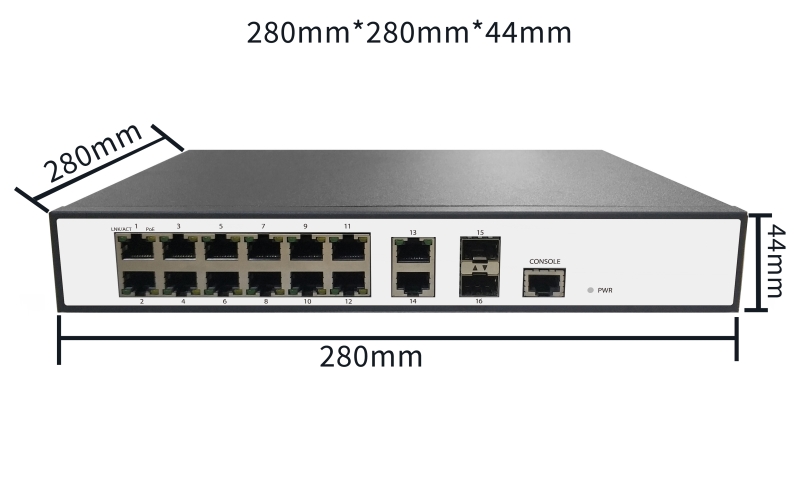

MechanicalDimensions (W×H×D)280 mm × 44 mm × 280 mm

Weight4 kg


HODONET S3100-14G2F-PoE+, 14-Port Gigabit PoE+ Managed Switch (12 PoE Ports)

The HODONET S3100-14G2F-PoE+ is a compact, silent PoE managed switch designed specifically for small and medium-sized office and commercial environments with stringent requirements for operational noise. It offers a flexible port configuration within a compact chassis: 12 Gigabit PoE+ ports compliant with 802.3af/at standards, delivering a total power budget of up to 185W for devices like wireless access points and IP cameras; complemented by 2 Gigabit SFP fiber ports for long-distance or interference-resistant uplinks, and 2 additional Gigabit copper ports for connecting standard endpoints. Its standout feature is the completely fanless thermal design, enabling absolute zero-noise operation, making it ideal for integration into quiet spaces such as open-plan offices, conference rooms, hotel guest rooms, classrooms, or medical consultation rooms. The switch also boasts comprehensive Layer 2 network management, traffic optimization, and security control features, ensuring users do not sacrifice network manageability and reliability while enjoying simple deployment and a silent experience.
