S3100-12M2XT2XF-PoE+ 12x 2.5G PoE+ ports + 2x 10GBase-T + 2x 10G SFP+

MODELS3100-12M2XT2XF-PoE+

  • 12x 2.5G PoE+ ports + 2x 10GBase-T + 2x 10G SFP+, hybrid uplinks

  • 184.8W PoE budget, 802.3af/at compliant for high-bandwidth devices

  • Full Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • Compact design with fan cooling, balances performance & flexibility

  • Ideal for Wi-Fi 6/7 AP clusters, high-speed NAS & multimedia terminals

GET A FREE QUOTE

Specifications Description

HODONET S3100-12M2XT2XF-PoE+ Product Specifications
*12-Port 2.5G PoE+ Managed Switch (with Hybrid 10G Uplinks)*

CategoryItemSpecification
OverviewDescriptionA compact high-performance PoE access switch featuring 12 multi-rate 2.5G PoE ports, 2x 10G SFP+ ports, and 2x 10GBase-T ports. Its unique hybrid 10G uplink options and 184.8W PoE budget are designed for high-bandwidth device access and flexible uplink scenarios.
Physical SpecsPerformance

• Switching Capacity140 Gbps

• Forwarding Rate104.16 Mpps

• MAC Address Table16K

Hardware

• Flash Memory256 MB

• DRAM2 GB

Power

• InputAC 100-240V， 50/60 Hz

• Power Consumption30 W

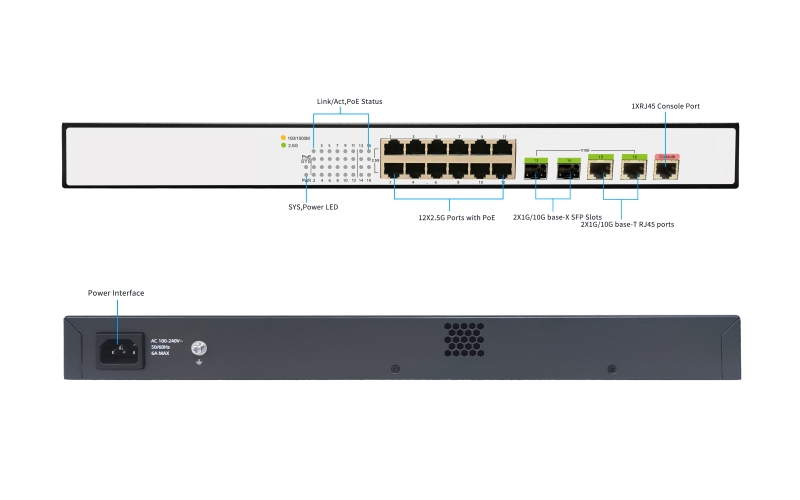

InterfaceData Ports12 x 10/100/1000/2500Base-T PoE+ RJ45 Ports
2 x 10G SFP+ Fiber Ports
2 x 10GBase-T RJ45 Ports

Management Ports1 x Console (RJ45)
PoEStandardIEEE 802.3af/at (applies to 8 PoE ports)

Total Power Budget184.8 W

PoE Port Count8 Ports (as specified)

Max. Power per Port30W (802.3at)

Simultaneous PowerAll 8 PoE Ports @ 15.4W
or 6 PoE Ports @ 30W
Software FeaturesSystem ManagementSNMP, CLI, Web, SSH, DNS, ISDP, LLDP, Timer Schedule

Layer 2 SwitchingVLAN (4K), STP, LACP (12 groups, up to 8 ports/group), Loop Protection, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q Tunneling

Quality of Service8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, DiffServ

SecurityPort Authentication, ACL, Access Control, Traffic Control, DoS Protection

Maintenance & MonitoringsFlow, Port Mirroring, Logging, Configuration File Management, Upgrade
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)

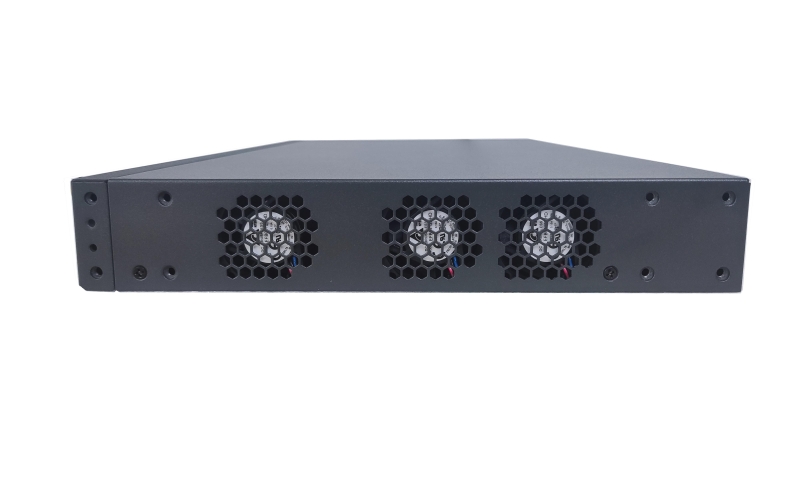

CoolingForced Air Cooling
MechanicalDimensions (W×H×D)280 mm × 44 mm × 180 mm

Weight4 kg


HODONET S3100-12M2XT2XF-PoE+, 12-Port 2.5G PoE+ Managed Switch (with Hybrid 10G Uplinks)

The HODONET S3100-12M2XT2XF-PoE+ is a compact PoE managed switch designed for high-performance hybrid access scenarios. It innovatively integrates three critical interface types: twelve 2.5G PoE+ ports deliver ample bandwidth and power to next-generation wireless APs and IoT devices; two 10GBase-T ports facilitate direct connection to high-performance NAS or workstations; and two 10G SFP+ fiber ports are reserved for high-quality fiber uplinks. This “copper and fiber coexisting” hybrid 10G uplink solution offers users ultimate deployment flexibility. With a 184.8W PoE budget and a comprehensive suite of Layer 2 management features, this switch effortlessly meets the complex demands for high-speed, reliable, and power-delivering network access in environments such as small studios, premium retail stores, and digital classrooms.
