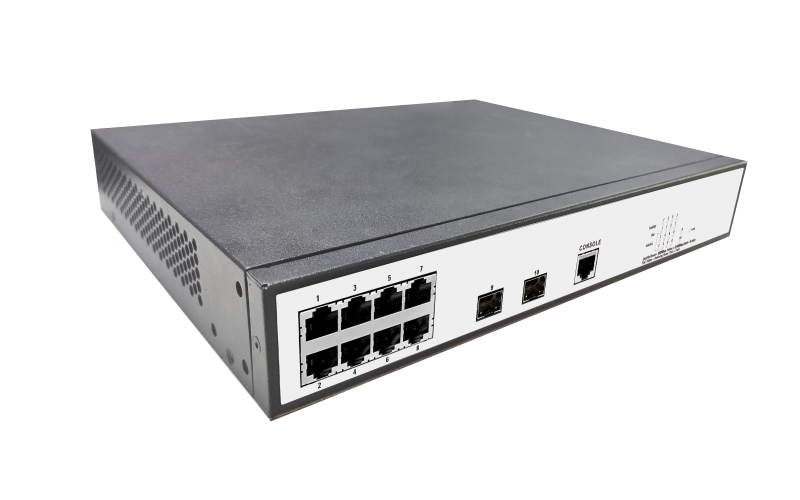

S3000-8G2F-PoE+ 8x1Gb RJ45, 2x1Gb SFP, Managed PoE+ Switch

MODELS3000-8G2F-PoE+

  • 8x GE PoE+ RJ45 ports + 2x GE SFP ports, compact design

  • 124W Max PoE budget, 802.3af/at compliant for APs, cameras, etc.

  • Full Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • Fan cooling ensures stable PoE delivery for surveillance & wireless

GET A FREE QUOTE

Specifications Description

HODONET S3000-8G2F-PoE+ Product Specifications
*8-Port Gigabit PoE+ Managed Switch*

CategoryItemSpecification
OverviewDescriptionA compact Layer 2 PoE+ managed switch featuring 8 Gigabit PoE ports and 2 Gigabit SFP slots. With a 124W PoE budget, it integrates data switching, power delivery, and intelligent management, making it suitable for small to medium-sized PoE applications like surveillance and wireless coverage.
Physical SpecsPerformance

• Switching Capacity20 Gbps

• Forwarding Rate14.88 Mpps

• MAC Address Table8K

Hardware

• Flash Memory128 MB

• DRAM1 GB

Power

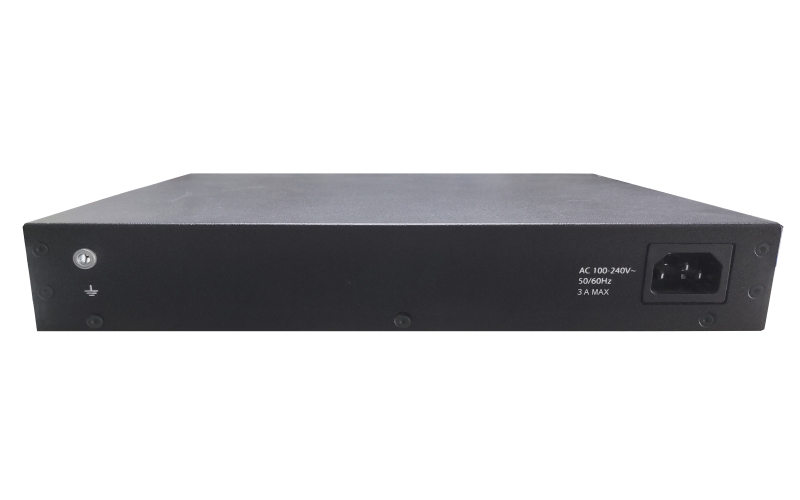

• InputAC 100-240V， 50/60 Hz

• Power Consumption15 W
InterfaceData Ports8 x 10/100/1000Base-T PoE+ RJ45 Ports
2 x 100/1000Base-X SFP Fiber Ports

Management Ports1 x Console (RJ45)
PoEStandardIEEE 802.3af/at

Total Power Budget124 W

Max. Power per Port30W (802.3at)

Simultaneous PowerAll 8 Ports @ 15.4W
or 4 Ports @ 30W
Software FeaturesSystem ManagementSNMP, CLI, Web, SSH, DNS, ISDP, LLDP, Timer Schedule, PoE Management

Layer 2 SwitchingVLAN (4K), STP, LACP (12 groups, up to 8 ports/group), Loop Protection, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q Tunneling

Quality of Service8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, DiffServ

SecurityPort Authentication, ACL, Access Control, Traffic Control, DoS Protection

Maintenance & MonitoringsFlow, Port Mirroring, Logging, Configuration File Management, Upgrade
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)

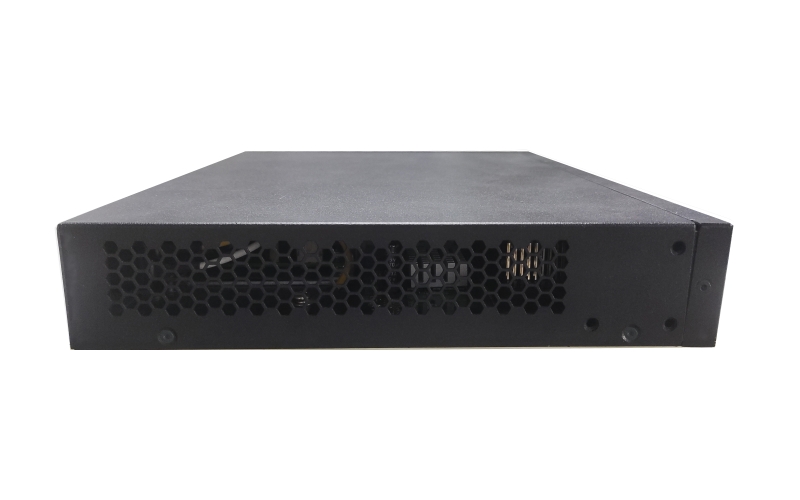

CoolingForced Air Cooling

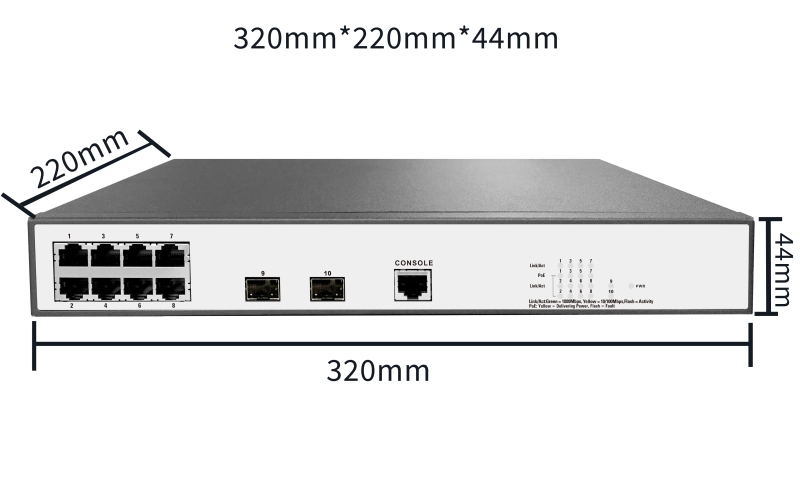

MechanicalDimensions (W×H×D)320 mm × 44 mm × 220 mm

Weight2.14 kg


HODONET S3000-8G2F-PoE+, 8-Port Gigabit PoE+ Managed Switch (with 2 SFP Slots)

The HODONET S3000-8G2F-PoE+ is a compact Layer 2 managed switch that integrates data switching and Power over Ethernet (PoE) capabilities. It features 8 x 10/100/1000Base-T PoE+ ports, each capable of delivering up to 30W of power, with a total maximum PoE power budget of 124W. This allows it to simultaneously provide stable power and data transmission to multiple Power Devices (PDs) such as wireless access points (APs), IP cameras, and IP phones, simplifying network deployment. Two additional Gigabit SFP fiber slots offer flexible fiber uplink or long-distance extension options. Equipped with comprehensive Layer 2 management, security, and Quality of Service (QoS) features, the switch can be managed in detail via Web or CLI interfaces to prioritize critical business traffic. Its active fan cooling design ensures stable operation under high PoE load, making it an ideal access layer choice for small and medium-sized enterprises, campuses, hotels, and surveillance systems seeking to integrate network and power delivery.
