S3000-8M4XF-POE+ 8x2.5Gb RJ45, 4x10Gb SFP+, Managed PoE+ Switch

MODELS3000-8M4XF-PoE+

  • 8x 2.5G PoE+ RJ45 ports + 4x 10G SFP+ ports, high-performance PoE access

  • 124W Max PoE budget, 802.3af/at compliant for high-power devices

  • Full Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • Fan cooling ensures stable operation for bandwidth & PoE-intensive devices

  • Designed for Wi-Fi 6/7 APs, high-res surveillance & high-bandwidth terminals

GET A FREE QUOTE

Specifications Description

HODONET S3000-8M4XF-PoE+ Product Specifications
*8-Port 2.5G PoE+ Managed Switch*

CategoryItemSpecification
OverviewDescriptionA compact high-performance 2.5G PoE+ managed switch featuring 8 multi-rate PoE ports and 4x 10G uplinks. With a 124W PoE budget, it is designed for next-generation high-bandwidth, high-power devices like Wi-Fi 6/7 APs and high-definition surveillance cameras.
Physical SpecsPerformance

• Switching Capacity120 Gbps

• Forwarding Rate89.28 Mpps

• MAC Address Table16K

Hardware

• Flash Memory128 MB

• DRAM4 GB

Power

• InputAC 100-240V， 50/60 Hz

• Power Consumption22 W
InterfaceData Ports8 x 10/100/1000/2500Base-T PoE+ RJ45 Ports
4 x 1G/10G SFP+ Fiber Ports

Management Ports1 x Console (RJ45)
PoEStandardIEEE 802.3af/at

Total Power Budget124 W

Max. Power per Port30W (802.3at)

Simultaneous PowerAll 8 Ports @ 15.4W
or 4 Ports @ 30W
Software FeaturesSystem ManagementSNMP, CLI, Web, SSH, DNS, ISDP, LLDP, Timer Schedule, PoE Management

Layer 2 SwitchingVLAN (4K), STP, LACP (12 groups, up to 8 ports/group), Loop Protection, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q Tunneling

Quality of Service8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, DiffServ

SecurityPort Authentication, ACL, Access Control, Traffic Control, DoS Protection

Maintenance & MonitoringsFlow, Port Mirroring, Logging, Configuration File Management, Upgrade
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)

CoolingForced Air Cooling

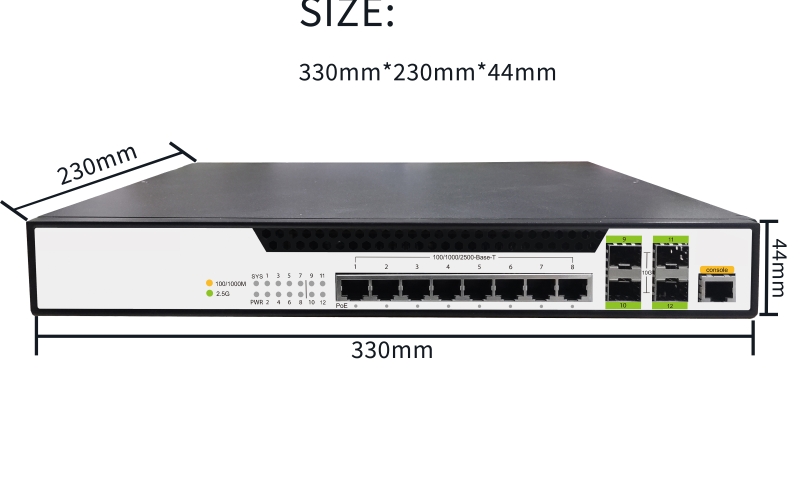

MechanicalDimensions (W×H×D)335 mm × 44 mm × 220 mm

Weight4 kg


HODONET S3000-8M4XF-PoE+, 8-Port 2.5G PoE+ Managed Switch (with 4x 10G SFP+ Slots)

The HODONET S3000-8M4XF-PoE+ is an advanced PoE managed switch designed for high-bandwidth, high-power device access scenarios. It features 8 x 2.5G Base-T PoE+ ports compliant with the 802.3af/at standards, each capable of delivering up to 30W of power. With a total PoE budget of 124W, it fully meets the power and data transmission demands of next-generation, high-power, high-traffic devices such as Wi-Fi 6/7 wireless access points and high-resolution PTZ cameras, completely eliminating power deployment challenges. Additionally, the four included 10G SFP+ fiber ports provide ample high-speed uplink bandwidth, ensuring non-blocking aggregation of access layer traffic. With a switching capacity of 120Gbps and a comprehensive suite of Layer 2 management, security, and traffic optimization features, this switch is the ideal all-in-one solution for centralized access, power delivery, and management of high-performance devices in enterprise, campus, smart building, and high-end surveillance systems.
