S1200-8M1XF 8-Port 2.5G + 1-Port 10G Base-T Desktop Unmanaged Switch

Home > Products > Enterprise Switches

S1200-8M1XF 8-Port 2.5G + 1-Port 10G Base-T Desktop Unmanaged Switch

MODELS1200-8M1XF

8x 2.5G RJ45 Ports + 1x 10G Base-T RJ45 Port, compact wall-mount design.
Fanless for zero noise and low power consumption, perfect for quiet environments.
Plug-and-play unmanaged switch for effortless high-density 2.5G network expansion.
Ideal for connecting multiple high-speed devices to a 10G network using standard Ethernet cables.

GET A FREE QUOTE

Specifications Description

HODONET S1200-8M1XF Product Specifications

*8-Port 2.5G + 1-Port 10G Base-T Desktop Unmanaged Switch*

Category	Item	Specification
Overview	Description	A compact, fanless desktop switch featuring 8x 2.5G RJ45 ports and 1x 10G Base-T RJ45 uplink port. With silent operation, wall-mount design, and plug-and-play simplicity, it is an ideal solution for expanding high-speed networks in home offices, creative studios, and small businesses.
Physical Specs	Performance	• Switching Capacity: 60 Gbps • Throughput: 44.64 Mpps • MAC Address Table: 16K • Jumbo Frame: 9K
	Hardware	• Memory: 8 Mbit

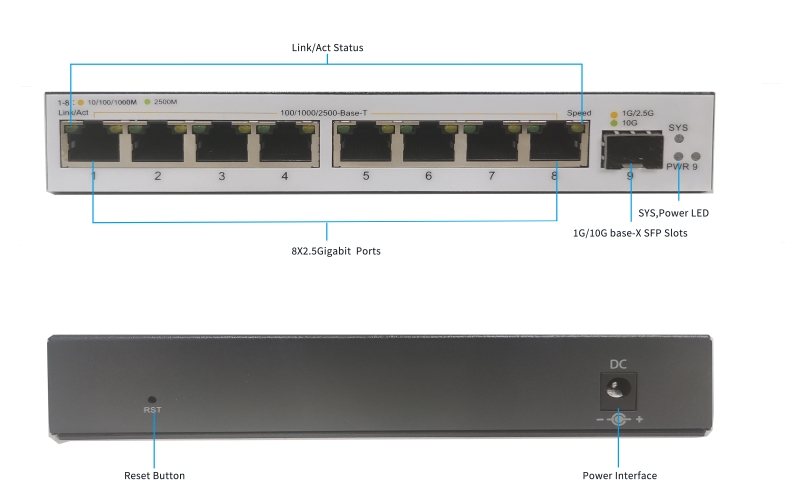

Interface	Data Ports	8 x 10/100/1000/2500Base-T RJ45 Ports 1 x 10G Base-T RJ45 Port
	LED Indicators	Ports 1-8 (2.5G): Link/Act (Green); Speed: 100M (Orange) / 1000M (Orange) / 2500M (Green) Port 9 (10G): Link/Act (Green); Speed: 1G (Orange) / 2.5G (Orange) / 10G (Green)
Power	Input	DC 12V, 1.5A, 50/60Hz
	Power Consumption	18 W
Design	Cooling	Fanless, Natural Convection
	Mounting	Wall Mount
	Protection Rating	IP30
Standards	Network	IEEE 802.3, 802.3u, 802.3ab, 802.3bz (2.5G), 802.3ae (10G), 802.3x
	EMC	Class B
Environmental	Operating Temperature	0°C to 40°C
	Storage Temperature	-20°C to 70°C
	Operating Humidity	5% to 85% RH (Non-condensing)
	Storage Humidity	5% to 95% RH (Non-condensing)
Mechanical	Dimensions (D×W×H)	168 mm × 90 mm × 29 mm
	Weight	0.38 kg
