S5000-24XF2QF 24x10Gb SFP+,2x40Gb QSFP+ Managed Switch

MODELS5000-24XF2QF

  • 24 x 10G SFP+ ports + 2 x 40G QSFP+ ports for high-density performance

  • Full Layer 2/3 routing capabilities (VLAN, OSPF, BGP, VRRP, etc.)

  • High 640Gbps switching capacity for aggregation & medium core networks

  • Standard 1U rack design with efficient cooling for network stability

  • Designed for data center aggregation, enterprise core & campus backbone

GET A FREE QUOTE

Specifications Description

HODONET S5000-24XF2QF Product Specifications

*24-Port 10G SFP+ with 2-Port 40G QSFP+ Aggregation Switch*

CategoryItemSpecification
OverviewDescriptionA high-density aggregation switch featuring 24x 10G SFP+ ports and 2x 40G QSFP+ uplink ports. Designed for data center server access, storage networks, or as a core switch for medium-sized enterprises, supporting comprehensive Layer 3 routing.
Physical SpecsPerformance• Switching Capacity: 640 Gbps
• Throughput: 476.16 Mpps
• MAC Address Table: 32K

Hardware• Flash Memory: 256 MB
• DRAM: 4 GB
InterfaceData Ports24 x 10G SFP+ Fiber Ports
2 x 40G QSFP+ Ports

Management Ports1 x Console Port (RJ45)
1 x USB Port (for configuration/file transfer)
Power & CoolingPower InputAC 100~240V, 50/60Hz

Power Consumption75 W (Max)

CoolingForced-Air Cooling (with Fans)
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)

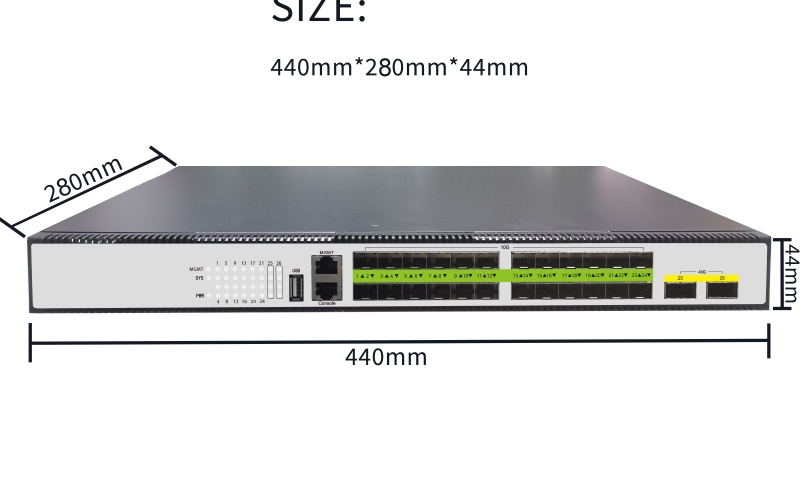

MechanicalDimensions (W×H×D)440 mm × 44 mm (1U) × 280 mm

Weight3.55 kg
Software & Protocol FeaturesSystem ManagementSNMP, CLI, Web GUI, SSH, DNS, LLDP, ISDP, Timer Schedule, DeviceView

Layer 2 SwitchingVLAN (4K), STP/RSTP/MSTP, LACP (12 groups, up to 8 ports/group), Loop Protection, ERPS, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q-in-Q Tunneling

Layer 3 RoutingStatic Routing, OSPF (v2/v3), BGP, RIP, VRRP, Route-Map, BFD, Router Discovery, IPv6 Support

Quality of Service (QoS)8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, 802.1p/DSCP Priority, DiffServ

SecurityPort Security (802.1X), ACL (IP/MAC/Port), Access Control, DoS Protection, Management Security

Maintenance & MonitoringsFlow, Port Mirroring, Syslog, Configuration Backup/Restore, Firmware Upgrade, Diagnostics


HODONET S5000-24XF2QF, 24-Port 10G + 2-Port 40G Layer 3 Managed Switch

The HODONET S5000-24XF2QF is a Layer 3 managed switch that integrates high-performance switching with intelligent routing, positioned for enterprise network aggregation layers or medium-sized network cores. It is equipped with 24 x 10G SFP+ ports for high-speed connections to servers and access switches, along with 2 x 40G QSFP+ uplink ports for building high-bandwidth backbones or connecting to higher-tier core devices. Its standout feature is support for rich Layer 3 routing protocols (such as OSPF, BGP, VRRP), enabling efficient cross-subnet routing and redundancy, which simplifies network architecture and enhances reliability. With a 640Gbps switching capacity and comprehensive QoS, security, and monitoring features, this switch can easily handle demanding scenarios like data center server aggregation, enterprise campus network backbones, or cloud computing access. It serves as a core cornerstone for building modern, flat, and intelligent networks.
