Home  >  Products  >  Enterprise Switches

S3000-8XF 8x10Gb SFP+ Managed Switch

MODELS3000-8XF

  • 8 x 1G/10G SFP+ fiber ports, all-optical & compact

  • Full Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • High 160Gbps switching capacity for high-bandwidth, low-latency needs

  • Fanless silent design, only 24W power consumption

  • Designed for quiet offices, HPC front-end & all-fiber access networks

GET A FREE QUOTE

Specifications Description

HODONET S3000-8XF Product Specifications

*8-Port 10G SFP+ Desktop Managed Switch*

CategoryItemSpecification
OverviewDescriptionA compact, fanless desktop switch featuring 8x 1G/10G SFP+ fiber ports. Designed for silent, high-performance network aggregation in offices, studios, or edge deployments where noise is a concern, offering full Layer 2 management capabilities.
Physical SpecsPerformance• Switching Capacity: 160 Gbps
• Throughput: 119.04 Mpps
• MAC Address Table: 32K

Hardware• Flash Memory: 256 MB
• DRAM: 4 Gb

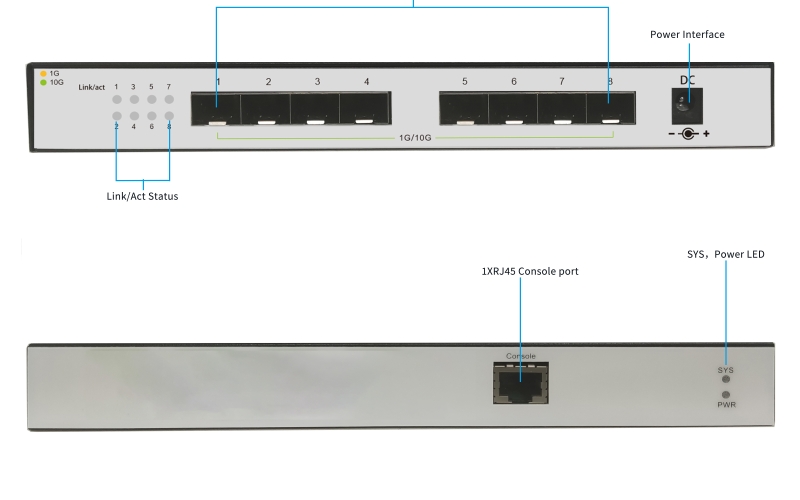

InterfaceData Ports8 x 1G/10G SFP+ Fiber Ports

Management Port1 x Console Port (RJ-45)
Power & CoolingPower InputDC 12V, 2A

Power Consumption24 W

CoolingFanless, Natural Convection
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)

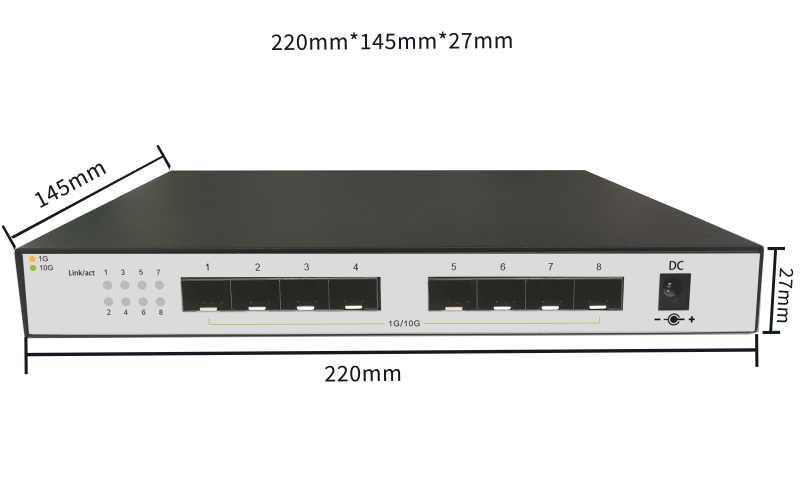

MechanicalDimensions (W×H×D)220 mm × 27 mm × 145 mm

Weight0.65 kg
Software & Protocol FeaturesSystem ManagementSNMP, CLI, Web GUI, SSH, DNS, LLDP, ISDP, Timer Schedule, DeviceView

Layer 2 SwitchingVLAN (4K), STP/RSTP/MSTP, LACP (12 groups, up to 8 ports/group), Loop Protection, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q-in-Q Tunneling

Quality of Service (QoS)8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, 802.1p/DSCP Priority, DiffServ

SecurityPort Security (802.1X), ACL (IP/MAC/Port), Access Control, DoS Protection, Management Security

Maintenance & MonitoringsFlow, Port Mirroring, Syslog, Configuration Backup/Restore, Firmware Upgrade, Diagnostics


HODONET S3000-8XF, 8-Port 10G SFP+ Layer 2 Managed Switch

The HODONET S3000-8XF is a compact, all-10-Gigabit managed switch focused on high-performance fiber connectivity and silent operation. It features 8 full-duplex 10G SFP+ fiber ports (backward compatible with 1G modules), creating a pure, high-speed, and interference-resistant optical network environment. It is ideally suited for connecting servers, storage devices, and core networks, meeting the stringent bandwidth and latency demands of data-intensive applications. Within its extremely compact and completely silent fanless chassis, it integrates a high switching capacity of 160Gbps and a complete suite of enterprise-grade Layer 2 management functions, including 4K VLAN, Link Aggregation, Quality of Service (QoS), and advanced security policies (ACL), all configurable via CLI or Web interface. Its ultra-low power consumption (only 24W) and desktop form factor allow it to blend noiselessly into any high-performance workspace sensitive to noise, such as financial trading floors, recording studios, design studios, or small data center access layers. It is the ideal foundation for building an efficient, reliable, and absolutely quiet high-speed network.
