S4300-12XF 12x10Gb SFP+ Managed Switch

MODELS4300-12XF

  • 12 x 10G SFP+ fiber ports for high-density all-optical access

  • Full Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • 240Gbps switching capacity for high-bandwidth aggregation

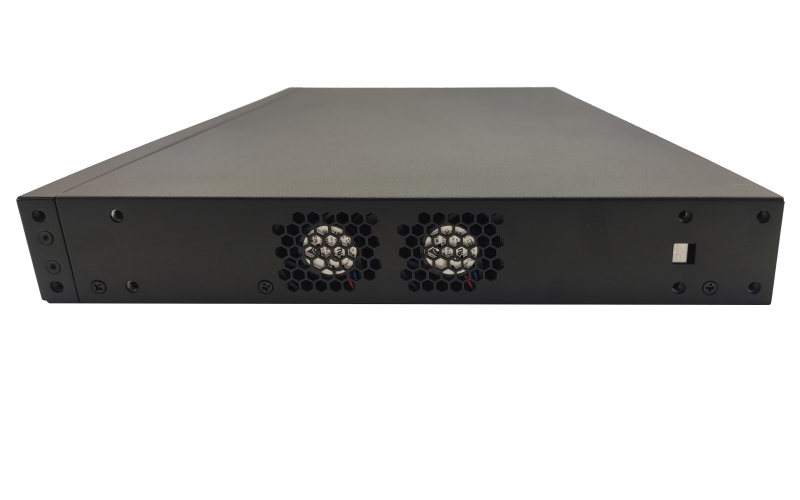

  • Standard 1U rack design with fan cooling for stable operation

  • Designed for server aggregation, storage networks & HPC front-end

GET A FREE QUOTE

Specifications Description

HODONET S4300-12XF Product Specifications

*12-Port 10G SFP+ Rackmount Managed Switch*

CategoryItemSpecification
OverviewDescriptionA compact 1U rackmount managed switch featuring 12x 10G SFP+ fiber ports. Designed for high-speed server aggregation, storage network access, or as a core switch in small to medium-sized networks, offering robust Layer 2 management and silent operation.
Physical SpecsPerformance• Switching Capacity: 240 Gbps
• Throughput: 178.56 Mpps
• MAC Address Table: 32K

Hardware• Flash Memory: 256 MB
• DRAM: 4 GB

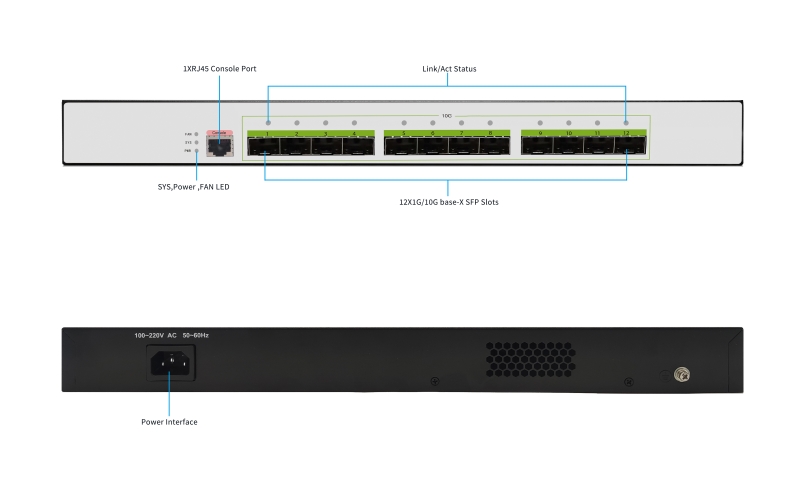

InterfaceData Ports12 x 10G SFP+ Fiber Ports

Management Port1 x Console Port (RJ-45)

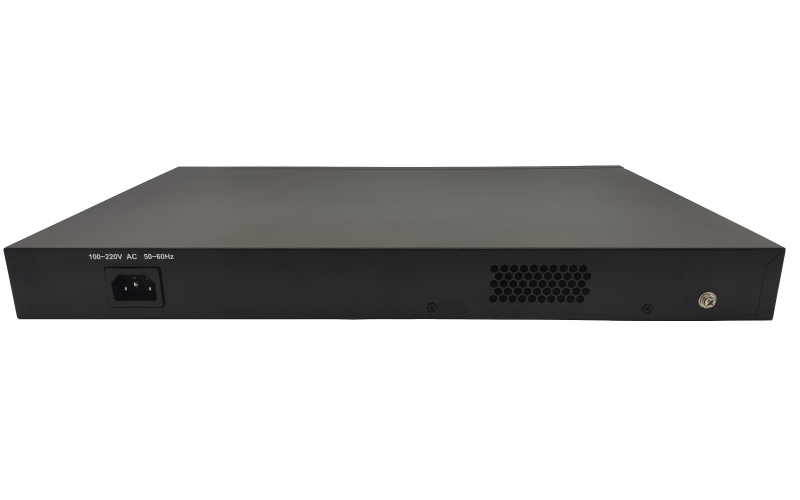

Power & CoolingPower InputAC 100~240V, 50/60Hz

Power Consumption75 W

CoolingFanless, Natural Convection
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)

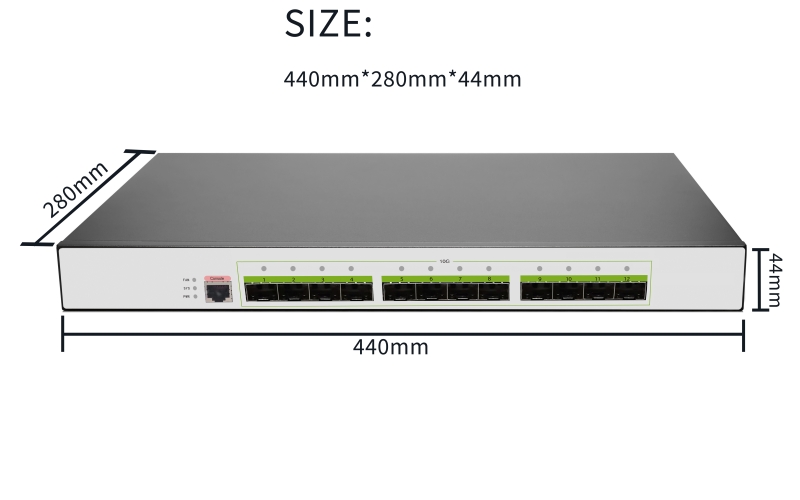

MechanicalDimensions (W×H×D)440 mm × 44 mm (1U) × 280 mm

Weight3.35 kg
Software & Protocol FeaturesSystem ManagementSNMP, CLI, Web GUI, SSH, DNS, LLDP, ISDP, Timer Schedule, DeviceView

Layer 2 SwitchingVLAN (4K), STP/RSTP/MSTP, LACP (12 groups, up to 8 ports/group), Loop Protection, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q-in-Q Tunneling

Quality of Service (QoS)8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, 802.1p/DSCP Priority, DiffServ

SecurityPort Security (802.1X), ACL (IP/MAC/Port), Access Control, DoS Protection, Management Security

Maintenance & MonitoringsFlow, Port Mirroring, Syslog, Configuration Backup/Restore, Firmware Upgrade, Diagnostics


HODONET S4300-12XF, 12-Port 10G SFP+ Layer 2 Managed Switch

The HODONET S4300-12XF is an all-10-Gigabit rack-mountable managed switch designed for high-bandwidth, low-latency application scenarios. It provides 12 x 10G SFP+ fiber ports, establishing a pure high-speed optical interconnection backbone for servers, high-performance storage arrays, and core network equipment. This effectively eliminates data transmission bottlenecks and meets the demands of modern data center services such as virtualization, big data analytics, and real-time computing. With a 240Gbps switching capacity and a comprehensive suite of Layer 2 features—including 4K VLAN, Link Aggregation, traffic policies, and security controls—this switch enables fine-grained network resource scheduling and reliable data forwarding. Its standard 1U rack-mountable form factor and efficient forced-air cooling system ensure long-term stable operation in server room environments. The S4300-12XF is the ideal core device for building enterprise data center server aggregation layers, Storage Area Networks (SAN), or front-end networks for High-Performance Computing (HPC) clusters.
