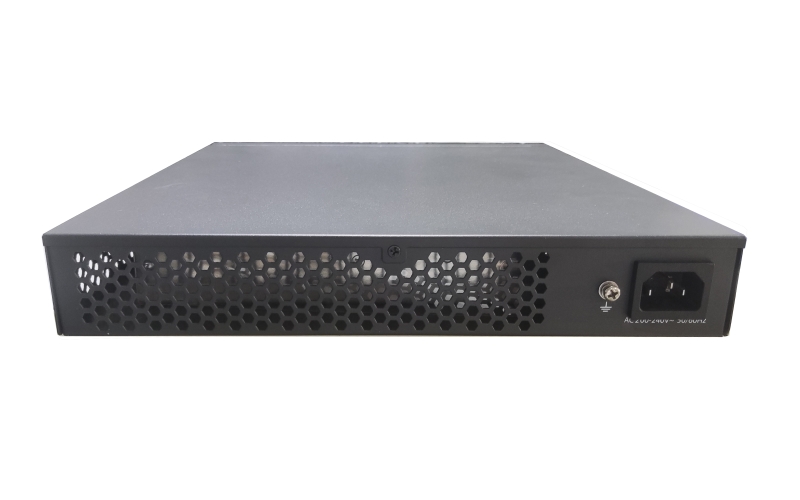

S3600-8MD4XF 8x5Gb RJ45,4x10Gb SFP+ Managed Switch

MODELS3600-8MD4XF

  • 8 x 5G Base-T ports + 4 x 10G SFP+ ports, compact and high-performance

  • Full Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • High switching capacity for NAS, workstations, and high-speed devices

  • Compact design with fan cooling, only 30W power consumption

  • Ideal for high-performance desktops, small studios & advanced home labs

GET A FREE QUOTE

Specifications Description

HODONET S3600-8MD4XF Product Specifications

*8-Port Multi-Gigabit (1G/2.5G/5G) + 4-Port 10G SFP+ Managed Switch*

CategoryItemSpecification
OverviewDescriptionA compact multi-gigabit aggregation switch featuring 8x 1G/2.5G/5G Base-T RJ45 ports and 4x 10G SFP+ uplink ports. Designed for high-speed workstation aggregation, small server clusters, or as a powerful edge switch, supporting advanced Layer 2 management in a space-efficient form factor.
Physical SpecsPerformance• Switching Capacity: 160 Gbps
• Throughput: 119.04 Mpps
• MAC Address Table: 16K

Hardware• Flash Memory: 256 MB
• DRAM: 2 Gb
InterfaceData Ports8 x 10/100/1000/2500/5000Base-T RJ45 Ports
4 x 10G SFP+ Fiber Ports

Management Port1 x Console Port (RJ-45)
Power & CoolingPower InputAC 100~240V, 50/60Hz

Power Consumption30 W

CoolingForced-Air Cooling (with Fans)
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)
MechanicalDimensions (W×H×D)280 mm × 44 mm × 180 mm

Weight2.3 kg
Software & Protocol FeaturesSystem ManagementSNMP, CLI, Web GUI, SSH, DNS, LLDP, ISDP, Timer Schedule, DeviceView

Layer 2 SwitchingVLAN (4K), STP/RSTP/MSTP, LACP (12 groups, up to 8 ports/group), Loop Protection, ERPS, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q-in-Q Tunneling

Quality of Service (QoS)8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, 802.1p/DSCP Priority, DiffServ

SecurityPort Security (802.1X), ACL (IP/MAC/Port), Access Control, DoS Protection, Management Security

Maintenance & MonitoringsFlow, Port Mirroring, Syslog, Configuration Backup/Restore, Firmware Upgrade, Diagnostics


HODONET S3600-8MD4XF, 8-Port 5G Base-T + 4-Port 10G SFP+ Layer 2 Managed Switch

The HODONET S3600-8MD4XF is a compact, high-performance managed switch designed for power users and cutting-edge applications. It features 8 multi-rate auto-negotiating 5G Base-T ports (100/1000/2500/5000Mbps), providing network bandwidth far beyond traditional Gigabit for high-end NAS, performance workstations, content creation PCs, and next-generation high-speed wireless access points, significantly improving the efficiency of large file access and real-time collaboration. The four included 10G SFP+ ports offer ample aggregated uplink bandwidth for easy connection to core networks or the creation of high-speed storage clusters. Within its compact chassis, it integrates a 160Gbps switching capacity and a complete suite of Layer 2 management features, including 4K VLAN, Link Aggregation, intelligent traffic management, and advanced security policies, all configurable via CLI or Web interface. Its active fan cooling design ensures stable operation under high-performance loads. The S3600-8MD4XF is the ideal network core for small studios, premium desktop setups, home servers, and research labs that demand ultimate network performance.
