S4100-48M4XF 48-Port 2.5G Managed Switch with 4-Port 10G SFP+ Uplinks

MODELS4100-48M4XF

  • 48x 2.5G RJ45 Ports + 4x 10G SFP+ Uplinks, 1U rack-mount form factor.

  • Full Layer 3 routing support (Static, OSPF, RIP, VRRP) for advanced network segmentation.

  • Comprehensive enterprise features: 4K VLANs, LACP, Advanced QoS, ACLs, and sFlow monitoring.

  • Designed for high-density access in enterprise, campus, and data center edge environments.

GET A FREE QUOTE

Specifications Description

HODONET S4100-48M4XF Product Specifications

*48-Port 2.5G Managed Switch with 4-Port 10G SFP+ Uplinks*

CategoryItemSpecification
OverviewDescriptionA high-density, high-performance rack-mount managed switch featuring 48x 2.5G RJ45 ports and 4x 10G SFP+ uplink ports. Designed for enterprise core, data center edge, or high-performance workgroup deployments requiring massive multi-gigabit access and advanced Layer 3 routing capabilities.
Physical SpecsPerformance• Switching Capacity: 320 Gbps
• Throughput: 238.08 Mpps
• MAC Address Table: 32K

Hardware• Flash Memory: 256 MB
• DRAM: 4 GB

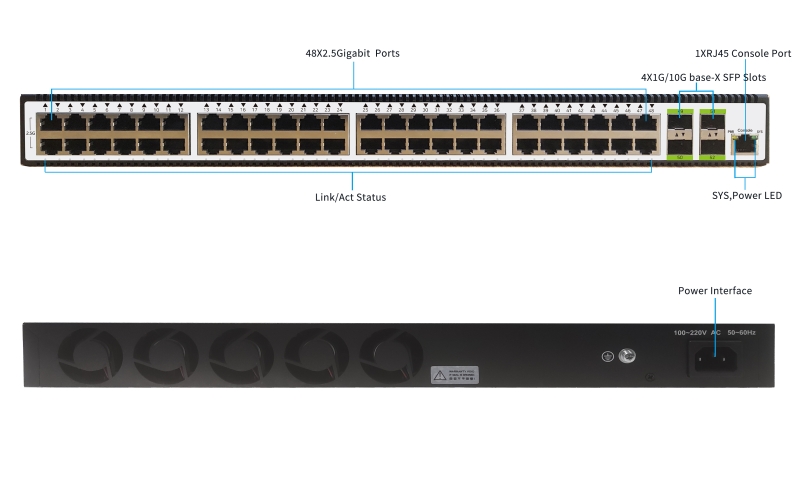

InterfaceData Ports48 x 10/100/1000/2500Base-T RJ45 Ports
4 x 10G SFP+ Fiber Ports

Management Port1 x Console Port (RJ-45)
Power & CoolingPower InputAC 100~240V, 50/60Hz

Power Consumption120 W (Max)

CoolingForced-Air Cooling (with Fans)
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)
MechanicalDimensions (W×H×D)440 mm × 44 mm (1U) × 330 mm

Weight4.85 kg
Software & Protocol FeaturesSystem ManagementSNMP (v1/v2c/v3), CLI, Web GUI, SSH, DNS, LLDP, ISDP, Timer Schedule, DeviceView

Layer 2 SwitchingVLAN (4K), STP/RSTP/MSTP, LACP (12 groups, up to 8 ports/group), Loop Protection, ERPS, Multicast (IGMP Snooping), UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q-in-Q Tunneling

Layer 3 RoutingStatic Routing, OSPF, RIP, VRRP, BFD, Router Discovery, IPv6 Support

Quality of Service (QoS)8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, 802.1p/DSCP Priority, DiffServ

SecurityPort Security (802.1X), ACL (IP/MAC/Port), Access Control, DoS Protection, Management Security

Maintenance & MonitoringsFlow, Port Mirroring (Many-to-1), Syslog, Configuration Backup/Restore, Firmware Upgrade, Diagnostics


HODONET S4100-48M4XF: The High-Density Core for the Multi-Gigabit Era

The HODONET S4100-48M4XF is a powerhouse managed switch engineered to meet the escalating bandwidth demands of modern enterprise networks. It consolidates connectivity for a high volume of devices by offering forty-eight 2.5 Gigabit Ethernet ports, providing ample headroom for high-speed PCs, IP phones, wireless APs (Wi-Fi 6/7), and IoT endpoints. Four 10 Gigabit SFP+ uplink ports deliver massive aggregated throughput to the network core or servers, preventing bottlenecks.

Beyond raw connectivity, it operates as a full-fledged Layer 3 switch, supporting static routing and dynamic protocols like OSPF and RIP. This enables intelligent inter-VLAN routing and network segmentation within the device itself, simplifying network architecture and improving performance. Advanced management features—including 4K VLANs, robust QoS policies for traffic prioritization, comprehensive security ACLs, and sFlow for network visibility—provide the control needed for critical business environments.

Housed in a standard 1U rack-mountable chassis with forced-air cooling for reliable operation, the S4100-48M4XF is the ideal choice for deploying as a high-density access switch in corporate offices, campus networks, or as a compact aggregation switch in medium-sized data centers, offering future-proof performance and enterprise-grade functionality.
