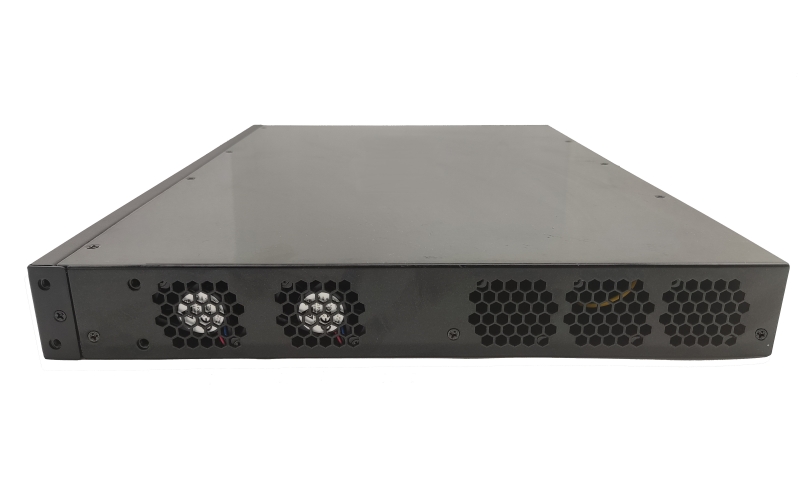

S3600-24G24F6XF 24x1Gb RJ45,24x1Gb SFP,6x10Gb SFP+ Managed Switch

MODELS3600-24G24F6XF

  • 24 GE RJ45 + 24 GE SFP + 6 10GE SFP+ ports for ultra-dense connectivity

  • Complete Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • High switching performance for aggregation layer demands

  • CLI & Web management with USB port for convenient maintenance

  • Designed for campus aggregation & data center access

GET A FREE QUOTE

Specifications Description

HODONET S3600-24G24F6XF Product Specifications

*24-Port Gigabit RJ45 + 24-Port Gigabit SFP + 6-Port 10G SFP+ Managed Switch*

CategoryItemSpecification
OverviewDescriptionA high-density, dual-media switch featuring 24x 1G RJ45 ports, 24x 1G SFP fiber ports, and 6x 10G SFP+ uplink ports. Designed for flexible deployments requiring a mix of copper and fiber connections at the access layer, with high-speed uplinks for aggregation in enterprise or data center environments.
Physical SpecsPerformance• Switching Capacity: 216 Gbps
• Throughput: 160.70 Mpps
• MAC Address Table: 32K

Hardware• Flash Memory: 256 MB
• DRAM: 4 GB
InterfaceData Ports24 x 10/100/1000Base-T RJ45 Ports
24 x 1000Base-X SFP Fiber Ports
6 x 10G SFP+ Fiber Ports

Management Ports1 x Console Port (RJ-45)
1 x USB Port
Power & CoolingPower InputAC 100~240V, 50/60Hz

Power Consumption75 W

CoolingForced-Air Cooling (with Fans)
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)
MechanicalDimensions (W×H×D)440 mm × 44 mm (1U) × 280 mm

Weight5.3 kg
Software & Protocol FeaturesSystem ManagementSNMP, CLI, Web GUI, SSH, DNS, LLDP, ISDP, Timer Schedule, DeviceView

Layer 2 SwitchingVLAN (4K), STP/RSTP/MSTP, LACP (12 groups, up to 8 ports/group), Loop Protection, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q-in-Q Tunneling

Quality of Service (QoS)8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, 802.1p/DSCP Priority, DiffServ

SecurityPort Security (802.1X), ACL (IP/MAC/Port), Access Control, DoS Protection, Management Security

Maintenance & MonitoringsFlow, Port Mirroring, Syslog, Configuration Backup/Restore, Firmware Upgrade, Diagnostics


HODONET S3600-24G24F6XF, 24-Port Gigabit RJ45 + 24-Port Gigabit SFP + 6-Port 10Gigabit SFP+ Layer 2 Managed Switch

The HODONET S3600-24G24F6XF is a high-performance managed switch designed for medium-scale network aggregation layers and high-density access scenarios. It offers an exceptionally flexible port configuration: 24 auto-negotiating 10/100/1000Base-T Gigabit Ethernet ports, 24 1000Base-X Gigabit SFP fiber ports, and 6 10G SFP+ uplink ports. This rich combination of “copper and fiber” connectivity allows it to simultaneously serve a large number of end devices, connect to downstream access switches, and achieve high-speed backbone interconnection via 10G fiber, making it an ideal core for building scalable, high-performance networks. With a switching capacity of 216Gbps and a comprehensive set of Layer 2 management features—including 4K VLAN, Link Aggregation, QoS, and ACL—it can be efficiently configured via CLI or Web interface. Its 1U rack-mountable design incorporates a fan cooling system to ensure stable and continuous operation at 75W power consumption. The S3600-24G24F6XF is perfectly suited as a powerful aggregation core for enterprise campus networks, school networks, medium-sized data centers, and surveillance storage networks, delivering robust data processing and forwarding capabilities.
