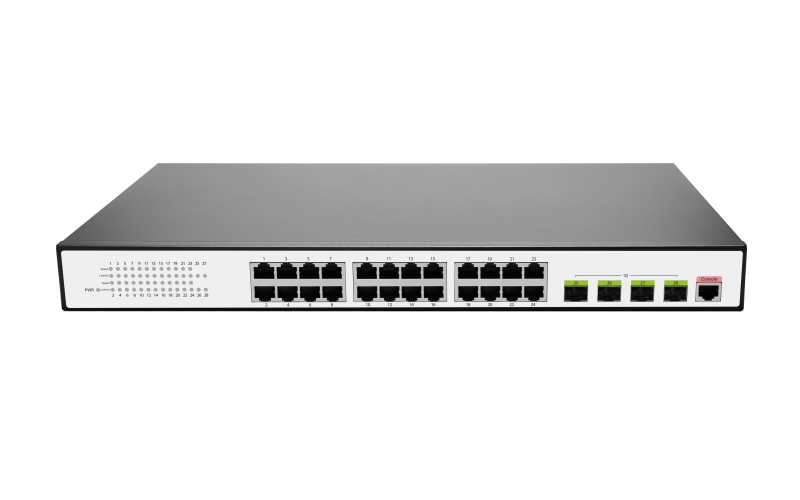

S3100-24G4F 24x1Gb RJ45,4x1Gb SFP Managed Switch

MODELS3100-24G4F

  • 24 GE RJ45 + 4 GE SFP ports for flexible networking

  • Rich Layer 2 management features (VLAN, Aggregation, QoS, ACL)

  • Fanless & quiet design, only 30W power consumption

  • Supports CLI & Web management for flexible configuration

  • Compact & robust, ideal for enterprise and server room

GET A FREE QUOTE

Specifications Description

HODONET S3100-24G4F Product Specifications

*24-Port Gigabit + 4-Port Gigabit SFP Managed Switch*

CategoryItemSpecification
OverviewDescriptionAn energy-efficient, fanless gigabit managed switch featuring 24x 10/100/1000Base-T RJ45 ports and 4x 100/1000Base-X SFP fiber ports. Designed for silent operation in office environments, providing basic Layer 2 management and flexible fiber connectivity for network extension.
Physical SpecsPerformance• Switching Capacity: 56 Gbps
• Throughput: 41.66 Mpps
• MAC Address Table: 8K

Hardware• Flash Memory: 128 MB
• DRAM: 1 GB
InterfaceData Ports24 x 10/100/1000Base-T RJ45 Ports
4 x 100/1000Base-X SFP Fiber Ports

Management Port1 x Console Port (RJ-45)
Power & CoolingPower InputAC 100~240V, 50/60Hz

Power Consumption30 W

CoolingFanless, Natural Convection
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)

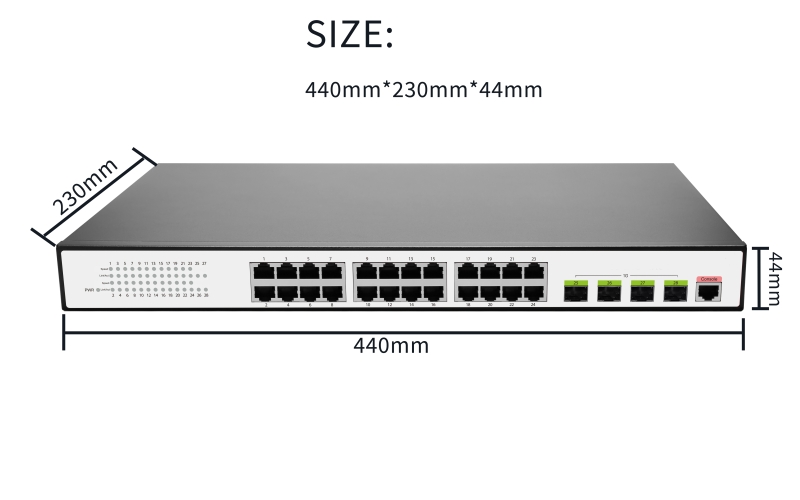

MechanicalDimensions (W×H×D)440 mm × 44 mm (1U) × 230 mm

Weight3.6 kg
Software & Protocol FeaturesSystem ManagementSNMP, CLI, Web GUI, SSH, DNS, LLDP, ISDP, Timer Schedule, DeviceView

Layer 2 SwitchingVLAN (4K), STP/RSTP/MSTP, LACP (12 groups, up to 8 ports/group), Loop Protection, ERPS, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q-in-Q Tunneling

Quality of Service (QoS)8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, 802.1p/DSCP Priority, DiffServ

SecurityPort Security (802.1X), ACL (IP/MAC/Port), Access Control, DoS Protection, Management Security

Maintenance & MonitoringsFlow, Port Mirroring, Syslog, Configuration Backup/Restore, Firmware Upgrade, Diagnostics


HODONET S3100-24G4F, 24-Port Gigabit + 4-Port SFP Layer 2 Managed Switch**



The HODONET S3100-24G4F is a cost-effective Gigabit managed switch designed for the access and aggregation layers of small to medium-sized enterprise networks. It features 24 auto-negotiating 10/100/1000Base-T RJ45 ports and 4 100/1000Base-X SFP slots, offering a flexible combination of copper access and fiber uplink to meet diverse cabling requirements. Equipped with comprehensive Layer 2 management capabilities, it supports 4K VLAN, Link Aggregation (LACP), Quality of Service (QoS), Access Control Lists (ACL), and port authentication, enabling network administrators to optimize traffic, enhance security, and improve management efficiency. With a fanless silent design and low-power architecture, it ensures quiet operation and reduces operational costs. Its robust metal housing, compact rack-mountable form factor, and wide operating temperature range guarantee long-term stable performance in various commercial environments, making it an ideal choice for building reliable, efficient, and easily manageable enterprise networks.
