S3000-24M2XF 24x2.5Gb RJ45,2x10Gb SFP+ Managed Switch

MODELS3000-24M2XF

  • 24 x 2.5G Base-T ports + 2 x 10G SFP+ ports for dense high-speed access

  • Full Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • High switching capacity for demanding bandwidth-intensive applications

  • Standard rack design with fan cooling, ideal for core access layer

  • Designed for high-performance offices, multimedia production & network upgrades

GET A FREE QUOTE

Specifications Description

HODONET S3000-24M2XF Product Specifications

*24-Port 2.5G + 2-Port 10G SFP+ Managed Switch*

CategoryItemSpecification
OverviewDescriptionA high-density access switch featuring 24x 2.5G RJ45 ports and 2x 10G SFP+ uplink ports. Designed for enterprise workgroups, classrooms, or digital signage networks that require extensive multi-gigabit device connectivity with high-performance uplinks, offering comprehensive Layer 2 management.
Physical SpecsPerformance• Switching Capacity: 160 Gbps
• Throughput: 119.04 Mpps
• MAC Address Table: 32K

Hardware• Flash Memory: 256 MB
• DRAM: 4 GB

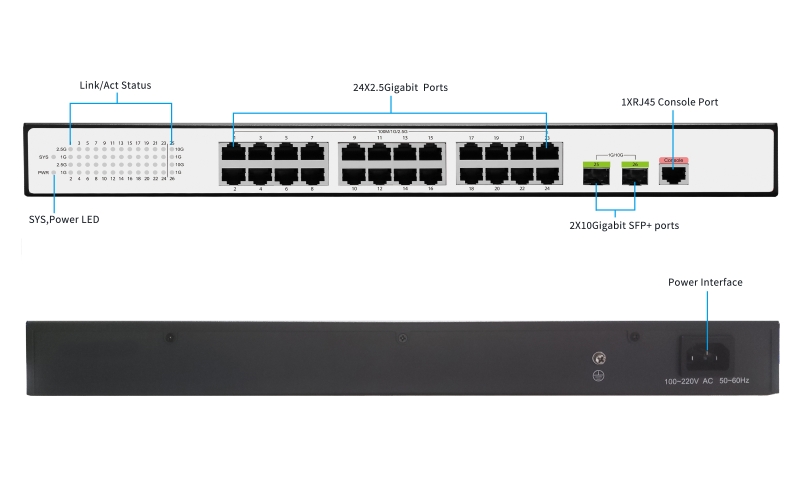

InterfaceData Ports24 x 10/100/1000/2500Base-T RJ45 Ports
2 x 10G SFP+ Fiber Ports

Management Port1 x Console Port (RJ-45)
Power & CoolingPower InputAC 100~240V, 50/60Hz

Power Consumption75 W (Max)

CoolingForced-Air Cooling (with Fans)
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)

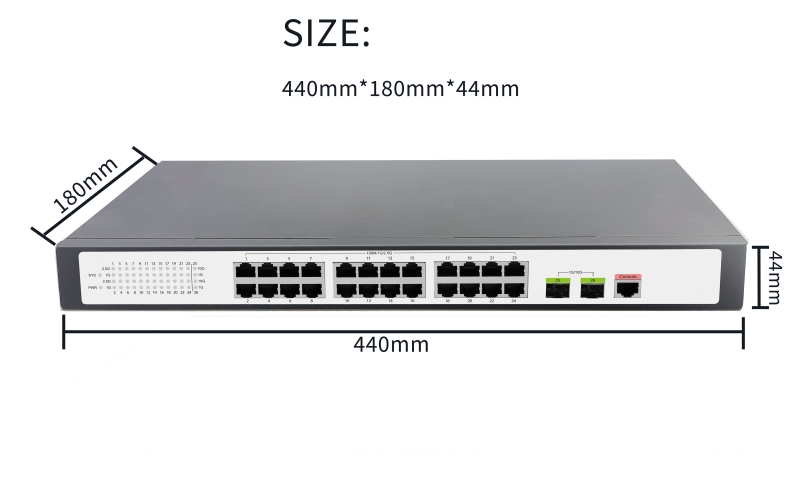

MechanicalDimensions (W×H×D)440 mm × 44 mm (1U) × 330 mm

Weight4.0 kg
Software & Protocol FeaturesSystem ManagementSNMP, CLI, Web GUI, SSH, DNS, LLDP, ISDP, Timer Schedule, DeviceView

Layer 2 SwitchingVLAN (4K), STP/RSTP/MSTP, LACP (12 groups, up to 8 ports/group), Loop Protection, ERPS, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q-in-Q Tunneling

Quality of Service (QoS)8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, 802.1p/DSCP Priority, DiffServ

SecurityPort Security (802.1X), ACL (IP/MAC/Port), Access Control, DoS Protection, Management Security

Maintenance & MonitoringsFlow, Port Mirroring, Syslog, Configuration Backup/Restore, Firmware Upgrade, Diagnostics


HODONET S3000-24M2XF, 24-Port 2.5G Base-T + 2-Port 10G SFP+ Layer 2 Managed Switch

The HODONET S3000-24M2XF is a high-density 2.5G access switch designed for enterprise network upgrades and bandwidth-intensive applications. It features up to 24 multi-rate Ethernet ports (10/100/1000/2500Mbps auto-negotiation), providing ample access bandwidth for modern high-performance endpoints such as premium PCs, NAS devices, and Wi-Fi 6/7 AP clusters, effectively overcoming the bottleneck of traditional Gigabit networks. The two included 10G SFP+ ports offer high-bandwidth uplinks, ensuring non-blocking connectivity to the aggregation layer. With a 160Gbps switching capacity and a comprehensive suite of Layer 2 management features—including 4K VLAN, Link Aggregation, intelligent traffic control, and security policies—this switch can effortlessly handle high-load network environments like video conferencing, large file transfers, and virtual desktop infrastructure. Its standard 1U rack-mountable design and efficient cooling system ensure long-term stable operation in enterprise server rooms or wiring closets. The S3000-24M2XF is the ideal choice for building future-proof, high-performance enterprise access networks, upgrading multimedia production environments, or creating efficient office networks.
