S3000-8M4XF 8x2.5Gb RJ45,4x10Gb SFP+ Managed Switch

MODELS3000-8M4XF

  • 8 x 2.5G Base-T ports + 4 x 10G SFP+ ports, compact yet powerful

  • Full Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • High switching capacity for high-speed devices and uplinks

  • Compact design with fan cooling, only 30W power consumption

  • Perfect for small studios, high-performance offices & NAS networks

GET A FREE QUOTE

Specifications Description

HODONET S3000-8M4XF Product Specifications

*8-Port 2.5G + 4-Port 10G SFP+ Managed Switch*

CategoryItemSpecification
OverviewDescriptionA compact, high-performance aggregation switch featuring 8x 2.5G RJ45 ports and 4x 10G SFP+ uplink ports. Designed for high-speed workgroup aggregation, small server connectivity, or as a powerful edge switch in offices and creative studios, offering comprehensive Layer 2 management.
Physical SpecsPerformance• Switching Capacity: 120 Gbps
• Throughput: 89.28 Mpps
• MAC Address Table: 16K

Hardware• Flash Memory: 256 MB
• DRAM: 2 GB

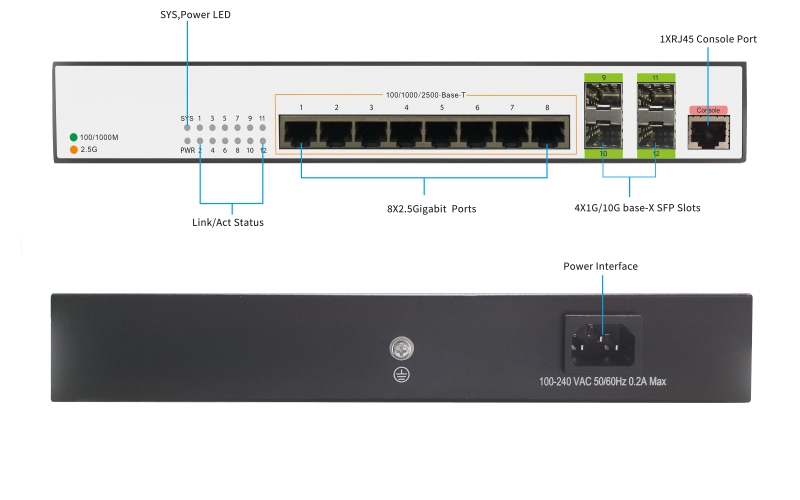

InterfaceData Ports8 x 10/100/1000/2500Base-T RJ45 Ports
4 x 10G SFP+ Fiber Ports

Management Port1 x Console Port (RJ-45)
Power & CoolingPower InputAC 100~240V, 50/60Hz

Power Consumption30 W

CoolingForced-Air Cooling (with Fans)
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)
MechanicalDimensions (W×H×D)280 mm × 44 mm × 180 mm

Weight2.3 kg
Software & Protocol FeaturesSystem ManagementSNMP, CLI, Web GUI, SSH, DNS, LLDP, ISDP, Timer Schedule, DeviceView

Layer 2 SwitchingVLAN (4K), STP/RSTP/MSTP, LACP (12 groups, up to 8 ports/group), Loop Protection, ERPS, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q-in-Q Tunneling

Quality of Service (QoS)8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, 802.1p/DSCP Priority, DiffServ

SecurityPort Security (802.1X), ACL (IP/MAC/Port), Access Control, DoS Protection, Management Security

Maintenance & MonitoringsFlow, Port Mirroring, Syslog, Configuration Backup/Restore, Firmware Upgrade, Diagnostics


HODONET S3000-8M4XF, 8-Port 2.5G Base-T + 4-Port 10G SFP+ Layer 2 Managed Switch

The HODONET S3000-8M4XF is a compact, high-performance managed switch designed for next-generation high-speed applications. It forward-looking features 8 auto-negotiating 2.5G Base-T ports (100/1000/2500Mbps), fully unleashing the potential of high-end PCs, workstations, NAS storage, and Wi-Fi 6/7 access points. Complementing these are 4 x 10G SFP+ fiber ports, providing up to 40Gbps of uplink bandwidth for effortless handling of internal high-speed data exchange or core network connectivity. Packed within its compact chassis is a robust 120Gbps switching capacity and a complete suite of Layer 2 management features, including 4K VLAN, Link Aggregation, traffic prioritization, and security policies, all configurable via CLI or Web interface. Its active fan cooling design ensures consistent and stable performance output. The S3000-8M4XF is the ideal core device for small creative studios, high-performance office environments, video editing networks, and home labs seeking high-speed and reliable network connectivity.
