S3000-8G2F 8x1Gb RJ45,2x1Gb SFP Managed Switch

MODELS3000-8G2F

  • 8 GE RJ45 ports + 2 GE SFP ports, compact and flexible

  • Full Layer 2 management (VLAN, Aggregation, QoS, ACL)

  • Fanless quiet design, only 15W power consumption

  • CLI & Web management for professional configuration

  • Ideal for small offices, branch stores, and retail shops

GET A FREE QUOTE

Specifications Description

HODONET S3000-8G2F Product Specifications

*8-Port Gigabit + 2-Port Gigabit SFP Managed Switch*

CategoryItemSpecification
OverviewDescriptionA compact, fanless gigabit managed switch featuring 8x 10/100/1000Base-T RJ45 ports and 2x 1G SFP fiber ports. Designed for silent, reliable network access in small offices, retail stores, or home offices, offering essential Layer 2 management and flexible fiber uplink options.
Physical SpecsPerformance• Switching Capacity: 20 Gbps
• Throughput: 14.88 Mpps
• MAC Address Table: 8K

Hardware• Flash Memory: 128 MB
• DRAM: 1 GB
InterfaceData Ports8 x 10/100/1000Base-T RJ45 Ports
2 x 1G SFP Fiber Ports

Management Port1 x Console Port (RJ-45)
Power & CoolingPower InputAC 100~240V, 50/60Hz

Power Consumption15 W

CoolingFanless, Natural Convection
EnvironmentalOperating Temperature0°C to 40°C

Storage Temperature-20°C to 70°C

Operating Humidity20% to 85% RH (Non-condensing)

Storage Humidity5% to 95% RH (Non-condensing)

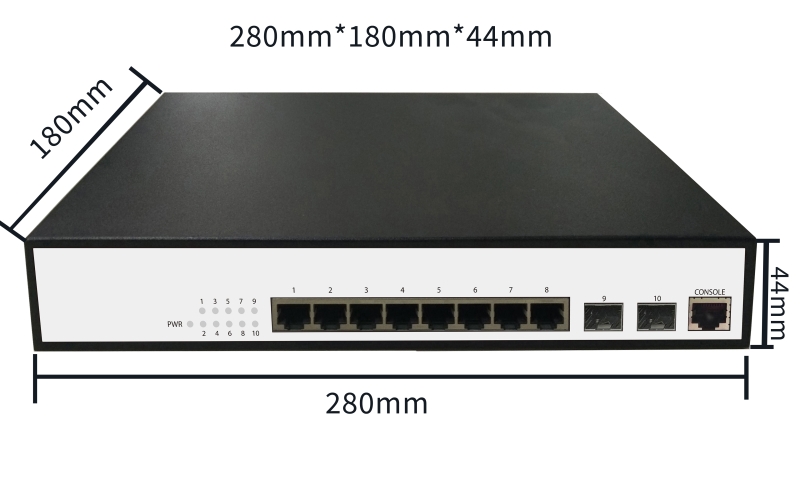

MechanicalDimensions (W×H×D)280 mm × 44 mm × 180 mm

Weight1.94 kg
Software & Protocol FeaturesSystem ManagementSNMP, CLI, Web GUI, SSH, DNS, LLDP, ISDP, Timer Schedule, DeviceView

Layer 2 SwitchingVLAN (4K), STP/RSTP/MSTP, LACP (12 groups, up to 8 ports/group), Loop Protection, ERPS, Multicast, UDLD

VLANPort-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q-in-Q Tunneling

Quality of Service (QoS)8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, 802.1p/DSCP Priority, DiffServ

SecurityPort Security (802.1X), ACL (IP/MAC/Port), Access Control, DoS Protection, Management Security

Maintenance & MonitoringsFlow, Port Mirroring, Syslog, Configuration Backup/Restore, Firmware Upgrade, Diagnostics


HODONET S3000-8G2F, 8-Port Gigabit RJ45 + 2-Port Gigabit SFP Layer 2 Managed Switch

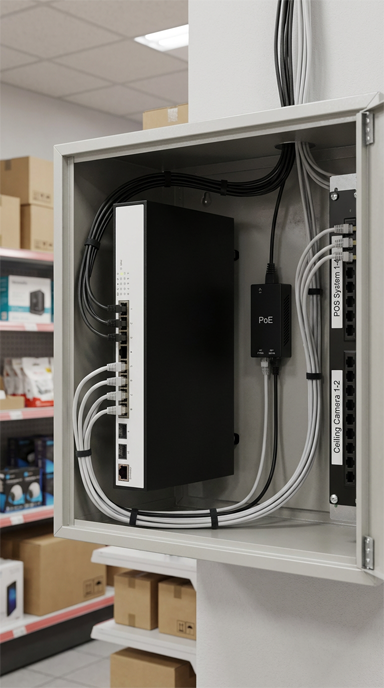

The HODONET S3000-8G2F is a compact, fully-featured managed switch designed for environments with limited space and budget. It combines 8 auto-negotiating 10/100/1000Mbps Gigabit Ethernet ports with 2 Gigabit SFP fiber ports, providing sufficient wired access while enabling long-distance, interference-resistant uplinks via fiber optics. This makes it an ideal core device for small-scale networks. Despite its small size and extremely low power consumption (only 15W), it makes no compromise on functionality, offering a complete set of advanced Layer 2 features including 4K VLAN, Link Aggregation (LACP), Quality of Service (QoS), port security, and Access Control Lists (ACL). These can be configured and managed in detail via CLI or Web interface. Its fanless, silent design guarantees absolutely zero-noise operation, making it particularly suitable for deployment in compact, quiet-sensitive spaces such as small offices, reception areas, meeting rooms, retail shops, or smart home wiring cabinets. The S3000-8G2F delivers enterprise-grade reliability, security, and management convenience to small business networks at an economical cost.
