S1200-4M2XF 4-Port 2.5G + 2-Port 10G SFP+ Desktop Unmanaged Switch

MODELS1200-4M2XF

4x 2.5G RJ45 Ports + 2x 10G SFP+ Ports, ultra-compact wall-mount design.
Fanless for zero noise and low power consumption, ideal for quiet spaces.
Plug-and-play unmanaged switch, perfect for effortless high-speed network expansion.
Designed for home offices, studios, and power users needing simple 2.5G/10G connectivity.

GET A FREE QUOTE

Specifications Description

HODONET S1200-4M2XF Product Specifications

*4-Port 2.5G + 2-Port 10G SFP+ Desktop Unmanaged Switch*

Category	Item	Specification
Overview	Description	An ultra-compact, fanless desktop switch featuring 4x 2.5G RJ45 ports and 2x 10G SFP+ uplinks. With silent operation and wall-mount design, it provides a simple, high-performance solution for home offices, studios, and users needing plug-and-play multi-gigabit connectivity.
Physical Specs	Performance	• Switching Capacity: 60 Gbps • Throughput: 44.64 Mpps • MAC Address Table: 16K • Jumbo Frame: 9K
	Hardware	• Memory: 8 Mbit
Interface	Data Ports	4 x 10/100/1000/2500Base-T RJ45 Ports 2 x 10G SFP+ Fiber Ports
	LED Indicators	Ports 1-4: Link/Act (Green); Speed: 100M (Orange) / 1000M (Orange) / 2500M (Green) Ports 5-6 (SFP+): Link/Act (Green); Speed: 1G (Orange) / 2.5G (Orange) / 10G (Green)

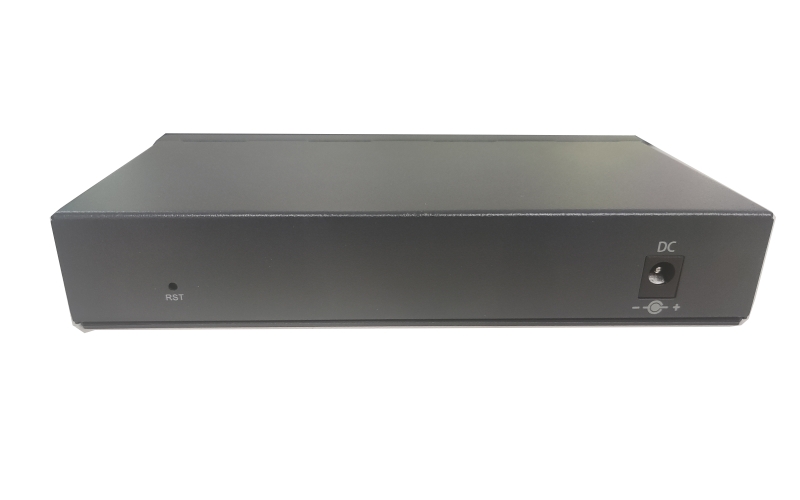

Power	Input	DC 12V, 1.5A, 50/60Hz
	Power Consumption	18 W
Design	Cooling	Fanless, Natural Convection
	Mounting	Wall Mount
	Protection Rating	IP30
Standards	Network	IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3ae, 802.3x
	EMC	Class B
Environmental	Operating Temperature	0°C to 40°C
	Storage Temperature	-20°C to 70°C
	Operating Humidity	5% to 85% RH (Non-condensing)
	Storage Humidity	5% to 95% RH (Non-condensing)

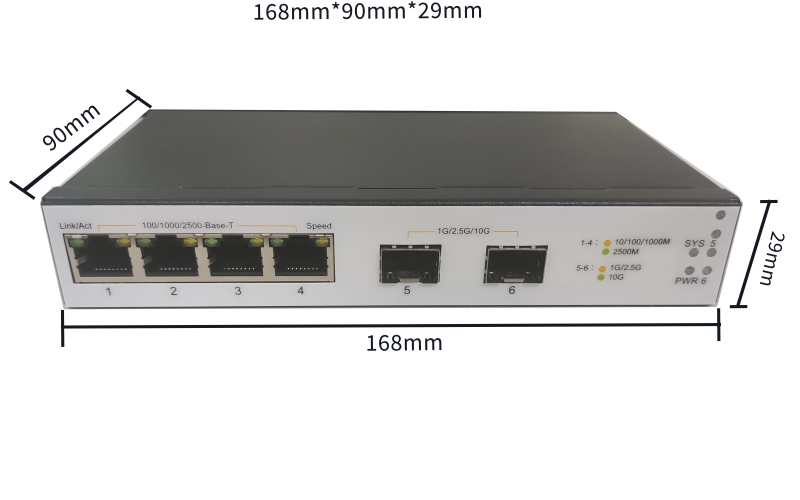

Mechanical	Dimensions (D×W×H)	168 mm × 90 mm × 29 mm
	Weight	0.35 kg
