S5000-8QF 8-Port 40G Managed Switch

Home > Products > Data Center Switches

8x 40G QSFP+ ports, designed for high-performance network core & aggregation
640Gbps switching capacity with full Layer 2 management (VLAN, Aggregation, QoS, ACL)
Compact 1U rack design with fan cooling for stable high-load operation
Ideal for high-speed storage networks, HPC front-end & enterprise backbone

GET A FREE QUOTE

HODONET S5000-8QF Product Specifications
*8-Port 40G Managed Switch*

Category	Item	Specification
Overview	Description	A high-performance compact Layer 2 managed switch featuring 8x 40G QSFP+ fiber ports. With a 640Gbps switching capacity and a comprehensive suite of Layer 2 management features, it is an ideal choice for building front-end networks for HPC, high-speed storage, or enterprise network core aggregation layers.
Physical Specs	Performance
	• Switching Capacity	640 Gbps
	• Forwarding Rate	476.16 Mpps
	• MAC Address Table	32K
	Hardware
	• Flash Memory	256 MB
	• DRAM	4 GB
	Power
	• Input	AC 100-240V， 50/60 Hz
	• Power Consumption	75 W

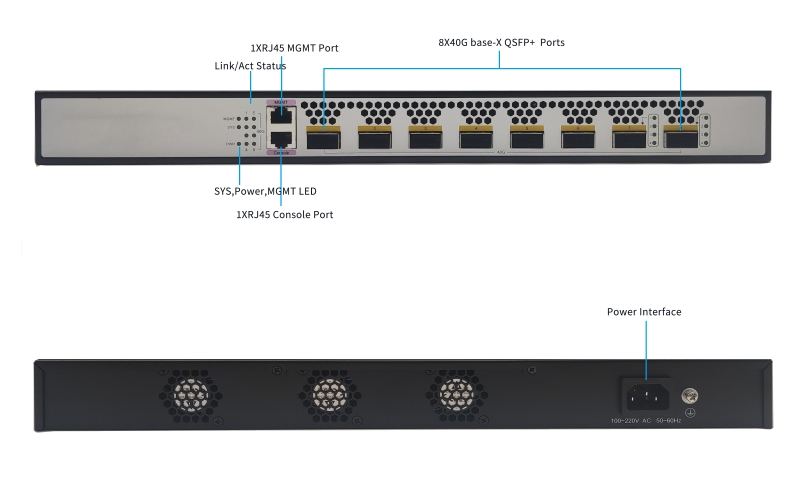

Interface	Data Ports	8 x 40G QSFP+ Fiber Ports
	Management Ports	1 x Console (RJ45)， 1 x MGMT Port (RJ45)
Software Features	System Management	SNMP, CLI, Web, SSH, DNS, ISDP, LLDP, Timer Schedule
	Layer 2 Switching	VLAN (4K), STP, LACP (12 groups, up to 8 ports/group), Loop Protection, Multicast, UDLD
	VLAN	Port-based VLAN, Voice VLAN, Protocol VLAN, GARP, 802.1Q Tunneling
	Quality of Service	8 Queues per Port, Ingress/Egress Rate Limiting, Auto QoS, DiffServ
	Security	Management Security, Port Authentication, ACL, Access Control, Traffic Control, DoS Protection
	Maintenance & Monitoring	sFlow, Port Mirroring, Logging, Configuration File Management, Upgrade
Environmental	Operating Temperature	0°C to 40°C
	Storage Temperature	-20°C to 70°C
	Operating Humidity	20% to 85% RH (Non-condensing)
	Storage Humidity	5% to 95% RH (Non-condensing)
	Cooling	Forced Air Cooling
Mechanical	Dimensions (W×H×D)	440 mm × 44 mm × 280 mm (1U)
	Weight	3.55 kg
