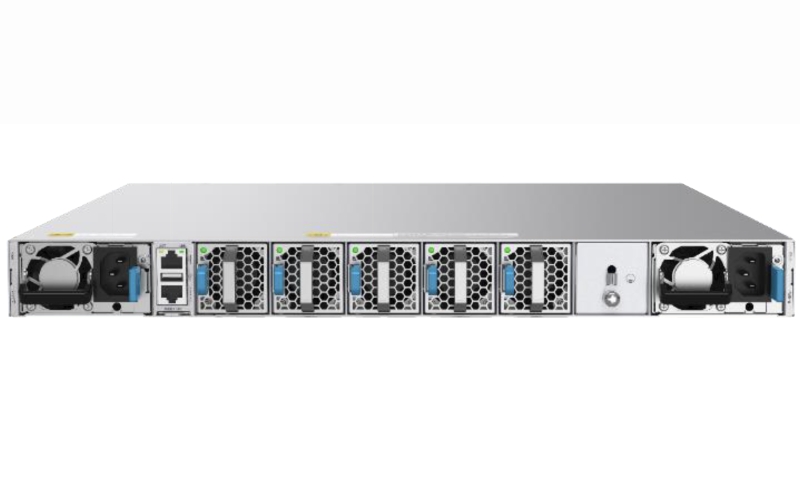

S7000-48SF8CQ 48-Port 25G + 8-Port 100G Data Center Core Switch
MODELS7000-48SF8CQ
48 x 25G SFP28 ports + 8 x 100G QSFP28 ports, ultra-high density & bandwidth
Advanced L3 features (BGP), VXLAN, MCLAG & lossless networking
High 4.0Tbps switching capacity for hyperscale data center cores
Redundant hot-plug PSUs & fans (N+1) for 99.999% high availability
Designed for AI/ML clusters, cloud-native DCs & high-performance storage
GET A FREE QUOTE
HODONET S7000-48SF8CQ Product Specifications
*48-Port 25G + 8-Port 100G Data Center Core Switch*
| Category | Item | Specification |
|---|---|---|
| Overview | Description | A next-generation high-performance data center core switch, featuring 48x 25G SFP28 ports and 8x 100G QSFP28 ports. With 4.0Tbps switching capacity and comprehensive support for advanced features like VXLAN, BGP, and RDMA lossless networking, it is the ideal core for building AI computing, cloud-native, and high-performance storage networks. |
| Physical Specs | Model | S7000-48SF8CQ |
| Switching Capacity | 4.0 Tbps | |
| Forwarding Capacity | 3000 Mpps | |
| Dimensions (L×W×H) | 442 mm × 550 mm × 44 mm | |
| Weight | < 12 kg | |
| Management Ports | 1 x RJ45 Console， 1 x Gigabit Management Port， 1 x USB | |
| Data Ports | 48 x 25G SFP28 Ports， 8 x 100G QSFP28 Ports | |
| Input Voltage | AC: 100-264Vac, 50-60Hz DC: 190-310Vdc | |
| Power Draw | Static < 160W， Max < 550W | |
| Redundancy | 2 Hot-plug PSUs (1+1 Redundancy) 5 Hot-plug Fans (N+1 Redundancy) | |
| Environmental | Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% to 95% RH (Non-condensing) | |
| Software Features | Port & Basic | Port Speed/Link-Delay/MTU Setting, Mgmt Port Enable/Disable, LLDP, Port Aggregation (Static/LACP), Port Oscillation Suppression, Port Description |
| MAC & VLAN | Dynamic/Static MAC, MAC Learning/Aging/Migration, Port-based VLAN (Access/Trunk Mode) | |
| IP Routing | Static/Default Routing, ECMP/UCMP/Policy Routing, BGP/BGP+ (Routing Policy, Aggregation, Hardware Fast Switching, BFD) | |
| IP Protocol Suite | Full IPv4 (ARP, ICMP, TCP, UDP, etc.) and IPv6 (ND, ICMPv6, TCP, UDP, etc.) support | |
| Data Center Features | VXLAN, MC-LAG | |
| Lossless Network | RDMA Lossless Ethernet (PFC, ECN), PFC Deadlock Detection, Congestion Avoidance (WRED, Tail Drop) | |
| Tunnel | GRE Support | |
| QoS/ACL | Data Plane Access Control, Global/Port/Ingress/Egress ACL, Flow Classification (Src/Dst IP, Protocol, Port), Actions (Redirect, Forward, Discard), DiffServ QoS, CAR Rate Limiting, SP/WRR/DWRR Queue Scheduling, Flow Shaping, Congestion Avoidance (WRED, ECN), 802.1p/DSCP Priority Mapping | |
| Security | CLI Hierarchical Protection, Data Logs, ACL Flow Filtration, Parity/ECC Detection & Repair, Kdump, NAT | |
| Administration & Maintenance | SNMP V2/V3, CLI (Console/Telnet/SSH), ZTP (Zero Touch Provisioning), Warm-Restart, RESTCONF/YANG, Python2/3 Support, System/User Logs, Hierarchical Alarms (PSU, Fan, Temperature), NTP, Debugging Tools (Ping, Tracert), File Upload/Download (FTP, TFTP, USB), Hotfix, Fan & Power Module Monitoring | |
| Flow Monitoring | sFlow, Mirroring (SPAN, ERSPAN, CPU), Port-based PPS/BPS Statistics | |
| DHCP | DHCP Server/Client, DHCP Snooping, DHCP Relay |
