S7000-48CQ8DQ 48-Port 100G + 8-Port 400G Data Center Core Switch

MODELS7000-48CQ8DQ

  • 48 x 100G DSFP + 8 x 400G QSFP-DD ports, defining next-gen core density

  • Advanced L3 features (BGP), VXLAN, MCLAG & RDMA lossless networking

  • Industry-leading 16.0Tbps capacity & 12000 Mpps forwarding rate

  • Fully redundant 1+1PSU,N+1fans hot-swappable design for 100% uptime

  • Designed for hyperscale AI/ML, cloud-native core & next-gen DC backbone

GET A FREE QUOTE

Specifications Description

HODONET S7000-48CQ8DQ Product Specifications
*48-Port 100G + 8-Port 400G Data Center Core Switch*

CategoryItemSpecification
OverviewDescriptionA flagship hyperscale data center core switch featuring 48x 100G DSFP ports and 8x 400G QSFP-DD ports. With a groundbreaking 16.0Tbps switching capacity and comprehensive support for BGP, VXLAN, MC-LAG, and RDMA lossless networking, it is engineered for next-generation AI/ML clusters, cloud-native cores, and ultra-high-bandwidth aggregation networks.
Physical SpecsModelS7000-48CQ8DQ

Switching Capacity16.0 Tbps

Forwarding Capacity12000 Mpps

Dimensions (L×W×H)442 mm × 550 mm × 44 mm

Weight< 12 kg

Management Ports1 x RJ45 Console, 1 x Gigabit Management Port, 1 x USB

Data Ports48 x 100G DSFP Ports, 8 x 400G QSFP-DD Ports

Input VoltageAC: 100-264Vac, 50-60Hz
DC: 190-310Vdc

Power DrawStatic < 250W, Max < 1300W

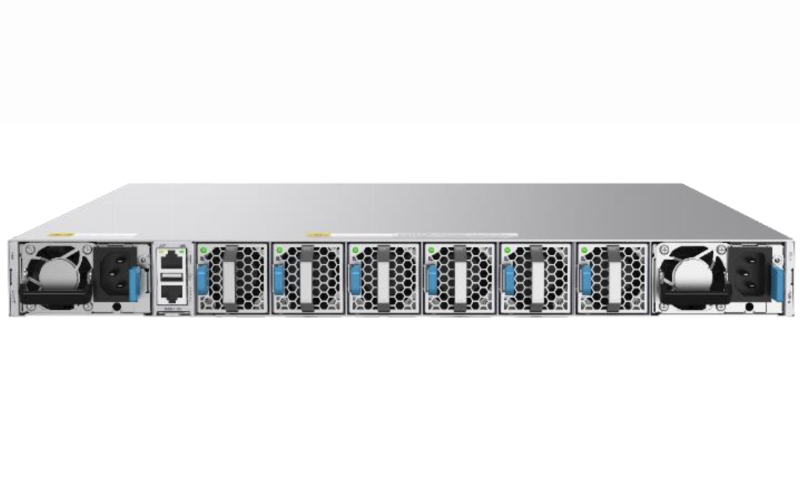

Redundancy2 Hot-plug PSUs (1+1 Redundancy)
6 Hot-plug Fans (N+1 Redundancy)
EnvironmentalOperating Temperature0°C to 40°C

Operating Humidity5% to 95% RH (Non-condensing)
Software FeaturesPort & BasicPort Speed/Link-Delay/MTU Setting, Mgmt Port Enable/Disable, LF/RF Alarm, Port Oscillation Suppression, Port Aggregation (Static/LACP), LLDP, Port Description

MAC & VLANDynamic/Static MAC, MAC Learning/Aging/Migration, Port-based VLAN (Access/Trunk Mode)

IP RoutingStatic/Default Routing, ECMP/UCMP/Policy Routing, BGP/BGP+ (Routing Policy, Aggregation, Hardware Fast Switching, BFD, Route Inversion Suppression)

IP Protocol SuiteFull IPv4 (ARP, ICMP, TCP, UDP, etc.) and IPv6 (ND, ICMPv6, TCP, UDP, etc.) support

Data Center FeaturesVXLAN, MC-LAG

Lossless NetworkRDMA Lossless Ethernet (PFC, ECN), PFC Deadlock Detection, Congestion Avoidance (WRED, Tail Drop)

TunnelGRE Support

QoS/ACLData Plane Access Control, Global/Port/Ingress/Egress ACL, Flow Classification (Src/Dst IP, Protocol, Port), Actions (Redirect, Forward, Discard), DiffServ QoS, CAR Rate Limiting, SP/WRR/DWRR Queue Scheduling, Flow Shaping, Congestion Avoidance (WRED, ECN), 802.1p/DSCP Priority Mapping

SecurityCLI Hierarchical Protection, Data Logs, ACL Flow Filtration, Parity/ECC Detection & Repair, Kdump, NAT

Administration & MaintenanceSNMP V2/V3, CLI (Console/Telnet/SSH), ZTP (Zero Touch Provisioning), Warm-Restart, RESTCONF/YANG, Python2/3 Support, System/User Logs, Hierarchical Alarms (PSU, Fan, Temperature), NTP, Debugging Tools (Ping, Tracert), File Upload/Download (FTP, TFTP, USB), Hotfix, Fan & Power Module Monitoring

Flow MonitoringsFlow, Mirroring (SPAN, ERSPAN, CPU), Port-based PPS/BPS Statistics

DHCPDHCP Server/Client, DHCP Snooping, DHCP Relay


HODONET S7000-48CQ8DQ, 48-Port 100G + 8-Port 400G Data Center Core Switch

The HODONET S7000-48CQ8DQ is an epoch-defining core switch designed for the data center traffic growth of the next decade, aiming to redefine the performance and density boundaries of the network core. It converges 48 high-density 100G DSFP ports with 8 cutting-edge 400G QSFP-DD ports. A single unit can deliver aggregate bandwidth of up to tens of terabits per second. Its 16.0Tbps switching capacity and 12,000 Mpps forwarding performance make it possible to construct an extremely flat, non-blocking data center architecture. As the strategic hub of the entire network, it integrates a complete suite of data center-grade features from BGP and VXLAN to MCLAG. Through deep optimization for RDMA RoCEv2 lossless networking (PFC/ECN), it provides nearly unlimited horizontal scaling capability and microsecond-level latency assurance for AI large model training, high-performance computing, and hyper-converged infrastructure. Combined with its ultra-high reliability design and intelligent O&M features, the S7000-48CQ8DQ is the ultimate choice for hyperscale cloud service providers, top-tier research institutions, and technology-leading large enterprises to build the next generation of intelligent, elastic, and ultra-high-performance data center core networks.
