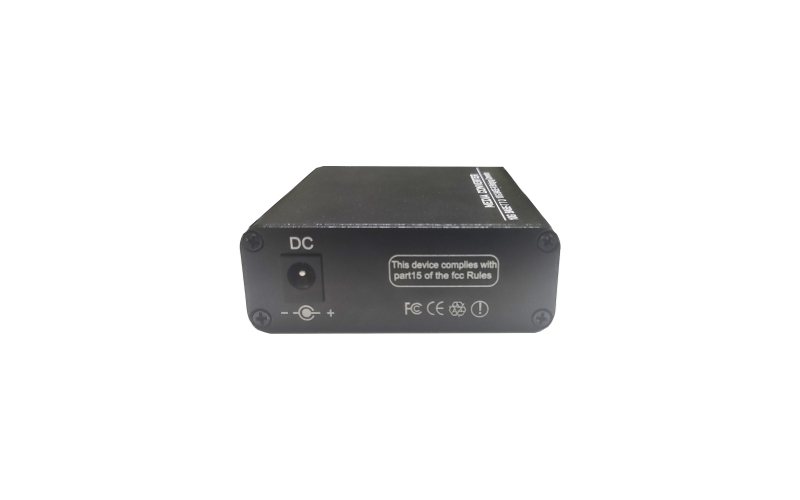

SF10G-T Single-Port 10-Gigabit Media Converter
MODELSF10G-T
1x10G SFP+ & 1x10G RJ45 ports for media conversion
Multi-rate 1G/2.5G/5G/10G auto-negotiation, Cat.6a+ compatible
Fanless, compact desktop design, plug-and-play
Long reach (fiber up to 120km with SFP+)
Cost-effective solution for hybrid cabling & distance extension
GET A FREE QUOTE
| Category | Item | Specification |
|---|---|---|
| Overview | Description | A compact desktop media converter for bi-directional conversion between 10GBase-T RJ45 and 10G SFP+ fiber, ideal for extending network reach and integrating hybrid cabling. |
| Interfaces | Electrical Port (RJ45) | |
| • Connector | RJ45 | |
| • Data Rates | 10M/100M/1G/2.5G/5G/10Gbps Auto-Negotiation | |
| • Duplex Mode | Full/Half Duplex | |
| • Cable Requirement | Cat.6a, Cat.7 or higher | |
| Optical Port (SFP+) | ||
| • Connector | Dependent on installed SFP+ module | |
| • Data Rate | 10Gbps | |
| • Duplex Mode | Full Duplex | |
| • Fiber Types | Single-Mode (9/125µm), Multi-Mode (50/125µm, 62.5/125µm) | |
| Performance & Features | Transmission Distance | Copper: ≤ 100m (Cat.6a/7); Fiber: Dependent on SFP+ module (up to 120 km) |
| Max Packet Forwarding Rate | 14,880,950 pps | |
| LED Indicators | PWR, Fiber, Link/Act, 1G/2.5G/5G/10G (Speed) | |
| Cooling Design | Fanless, silent. All-metal housing with convection cooling. | |
| Installation | Desktop, Plug-and-Play | |
| Protection Rating | Carrier-grade quality | |
| Physical & Environmental | Power Supply | Input: DC 12V, 1A; Power Consumption: ≤ 12W |
| Dimensions (L×W×H) | 95 mm × 70 mm × 26 mm | |
| Weight | 0.2 kg | |
| Operating Temperature | 0°C to 50°C | |
| Storage Temperature | -10°C to 70°C | |
| Operating Humidity | 5% to 90% RH (Non-condensing) | |
| Storage Humidity | 5% to 90% RH (Non-condensing) | |
| Compliance | Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3ae, 802.3x |
| EMC | Class B |
