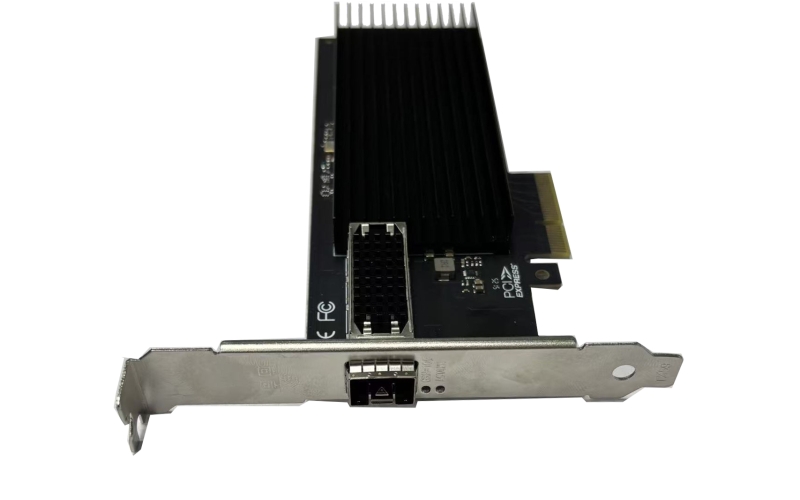

SC25G-F Single-Port 10G/25G Fiber Network Interface Card
MODELSC25G-F
Single-port 10G/25G SFP28 fiber network interface card
Dual-rate auto-negotiation, compatible with PCIe x16/x8/x4/x1 slots
Supports Windows 7/8/10 and Linux operating systems
Provides high-speed connectivity for HPC workstations, servers & AI nodes
GET A FREE QUOTE
HODONET SC25G-F Product Specifications
*Single-Port 10G/25G Fiber Network Interface Card*
| Category | Item | Specification |
|---|---|---|
| Overview | Description | A high-performance PCIe fiber network interface card offering dual-rate 10Gbps or 25Gbps fiber connectivity, ideal for servers, workstations, and high-performance computing environments. |
| Interface | Network Port | |
| • Type & Quantity | 1 x SFP28 Fiber Port | |
| • Data Rates | 10Gbps / 25Gbps Auto-Negotiation | |
| • Interface Standard | 10GBASE-R / 25GBASE-R | |
| Key Features | LED Indicators | ACT: Blinking (Port Data Activity) LNK: Steady On (Link Established) |
| Network Boot | PXE: Yes | |
| Wake-on-LAN | WOL: No | |
| Compatibility | Host Interface | PCI-E x16 / x8 / x4 / x1 Slots |
| Operating Systems | Windows 7 / 8 / 8.1 / 10, Linux | |
| Application Devices | Desktop Computers, Servers, Workstations | |
| Physical & Environmental | Dimensions (L×W×H) | 156 mm × 68 mm × 17 mm |
| Weight | 0.15 kg | |
| Operating Temperature | 0°C to 40°C | |
| Storage Temperature | -20°C to 70°C | |
| Operating Humidity | 5% to 85% RH (Non-condensing) | |
| Storage Humidity | 5% to 95% RH (Non-condensing) | |
| Compliance | Standards | IEEE 802.3, 802.3ae (10GBASE-R), 802.3by (25GBASE-R), 802.3x (Full-Duplex & Flow Control) |
