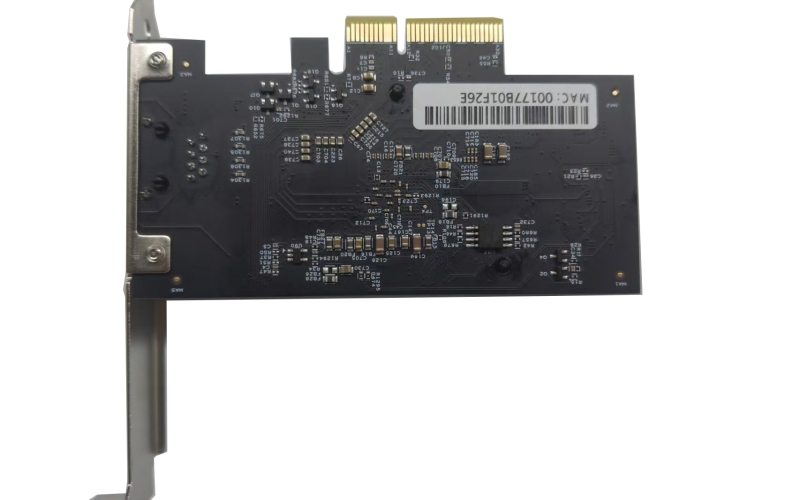

SC10G-T Single-Port 10G Multi-Rate Ethernet Network Interface Card
MODELSC10G-T
Single-port 10GBase-T RJ45 network interface card
Multi-rate auto-negotiation (10M to 10G), PCIe x16/x8/x4/x1 compatible
Supports Windows 7/8/10 and Linux operating systems
Ideal for workstations, servers, and high-performance desktops
GET A FREE QUOTE
HODONET SC10G-T Product Specifications
*Single-Port 10G Multi-Rate Ethernet Network Interface Card*
| Category | Item | Specification |
|---|---|---|
| Overview | Description | A high-performance PCIe copper network interface card offering a full range of Ethernet connectivity from 10M to 10G at multiple data rates, ideal for servers and workstations requiring high bandwidth and backward compatibility. |
| Interface | Network Port | |
| • Type & Quantity | 1 x 10GBase-T RJ45 Port | |
| • Data Rates | 10Mbps / 100Mbps / 1Gbps / 2.5Gbps / 5Gbps / 10Gbps Auto-Negotiation | |
| • Interface Standard | 10GBASE-T | |
| Key Features | LED Indicators | ACT: Blinking (Port Data Activity) LNK: Steady On (Link Established) |
| Network Boot | PXE: Yes | |
| Wake-on-LAN | WOL: No | |
| Compatibility | Host Interface | PCI-E x16 / x8 / x4 / x1 Slots |
| Operating Systems | Windows 7 / 8 / 8.1 / 10, Linux | |
| Application Devices | Desktop Computers, Servers, Workstations | |
| Physical & Environmental | Dimensions (L×W×H) | 105 mm × 62 mm × 17 mm |
| Weight | 0.15 kg | |
| Operating Temperature | 0°C to 40°C | |
| Storage Temperature | -20°C to 70°C | |
| Operating Humidity | 5% to 85% RH (Non-condensing) | |
| Storage Humidity | 5% to 95% RH (Non-condensing) | |
| Compliance | Standards | IEEE 802.3, 802.3an (10GBASE-T), 802.3x (Full-Duplex & Flow Control) |
